Home
>>
Chevrolet
>>
1985
>>
Spectrum L4-91.5 1.5L
>>
Repair and Diagnosis
>>
Cruise Control
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

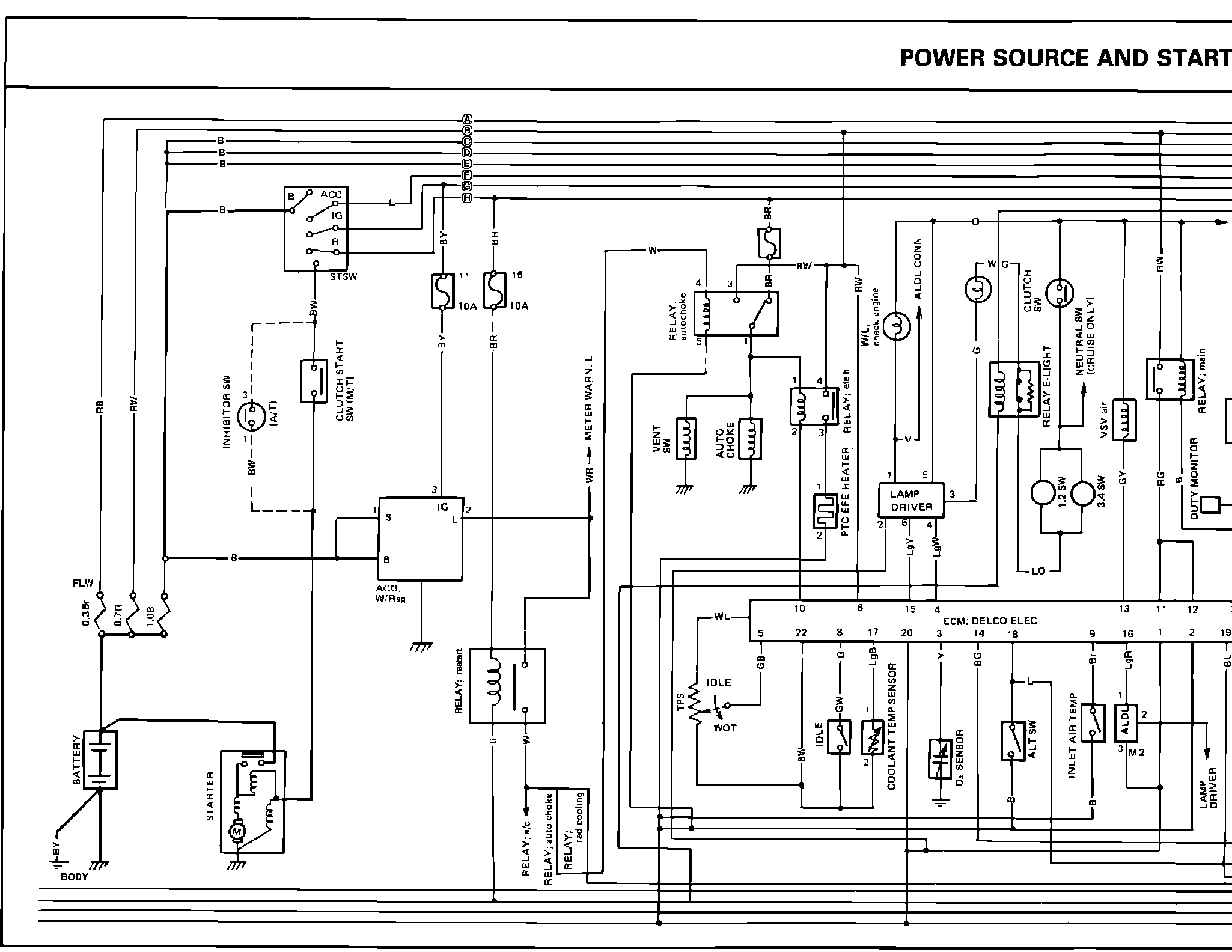

� �]�F�]Fig. 002ah Complete Body & Chassis Wiring Circuit. 1985-86:
