Home
>>
Chevrolet
>>
1985
>>
Nova/Chevy II L4-1600cc 4ALC Nummi
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Diagrams
>>
Electrical Diagrams
>>
Starting System
Starting System

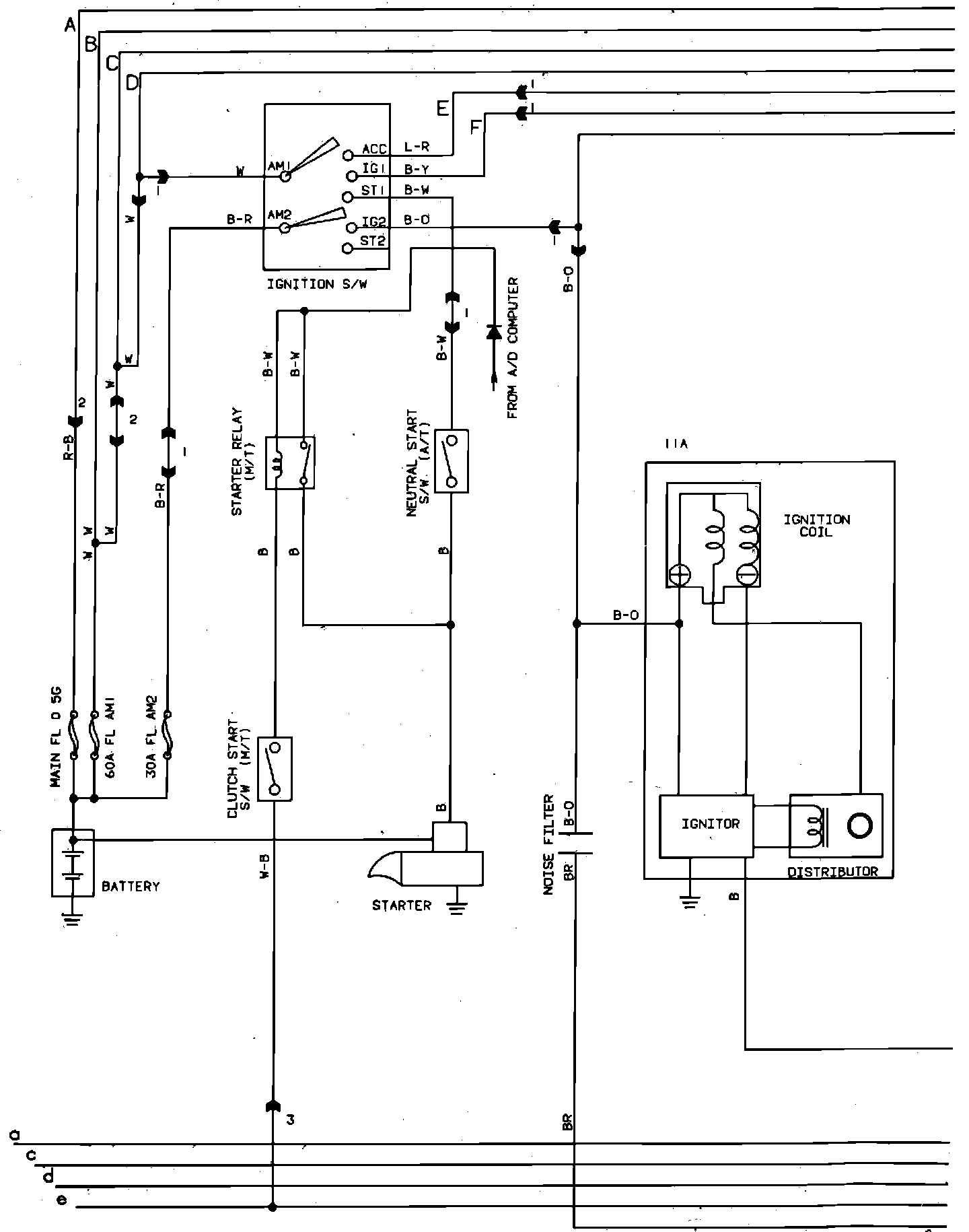

Ignition & Starter Wiring Circuit:
