Secondary Touch

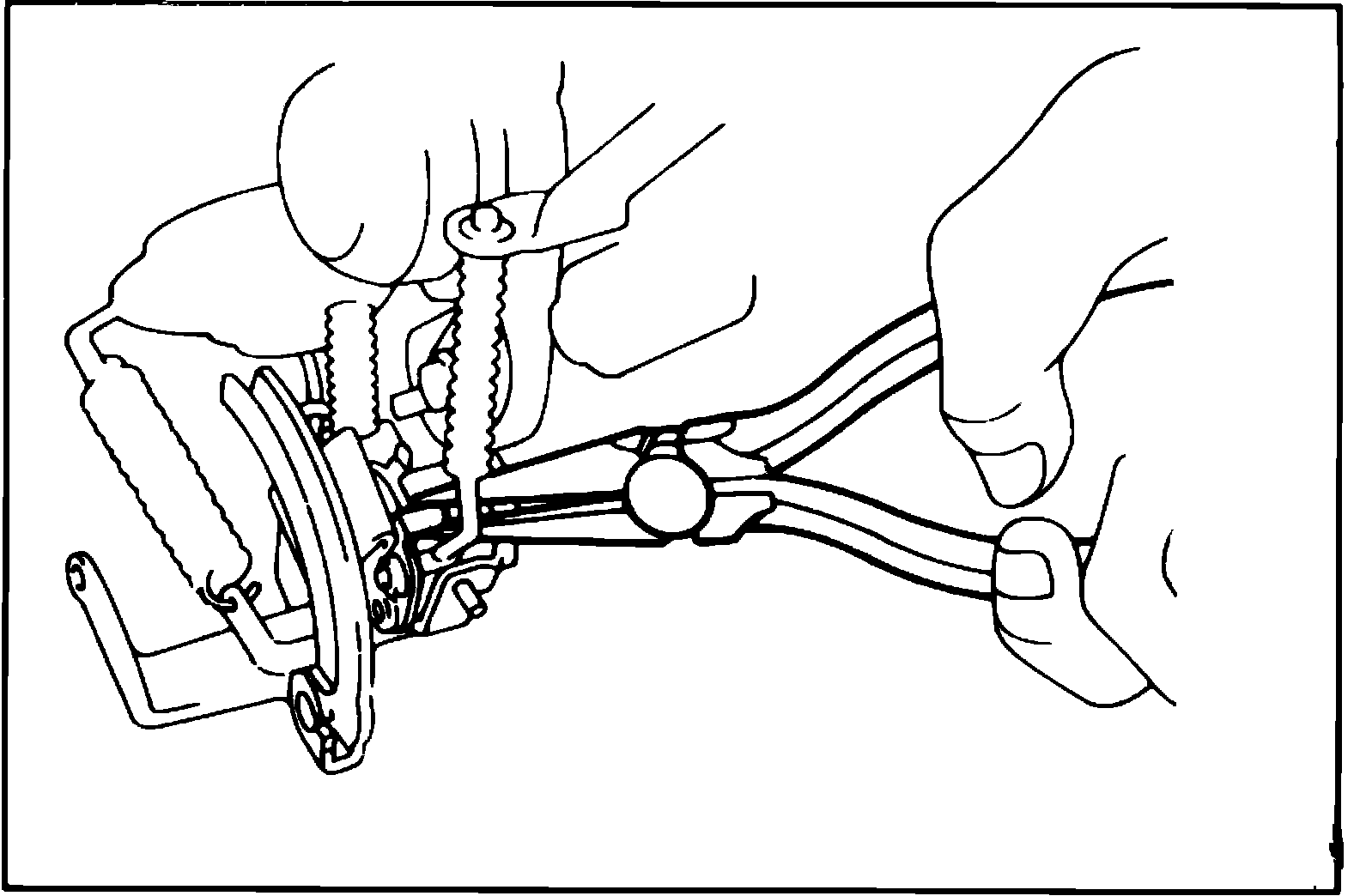

Fig. 9 Adjusting secondary touch:

1. Open throttle to the point where primary kick lever just touches secondary kick lever, then measure primary throttle valve-to-bore clearance
2. Compare measurement to Adjustment Specifications.
3. If measurement is not within specifications, adjust by bending primary kick lever, Fig. 9.
