Choke Unloader

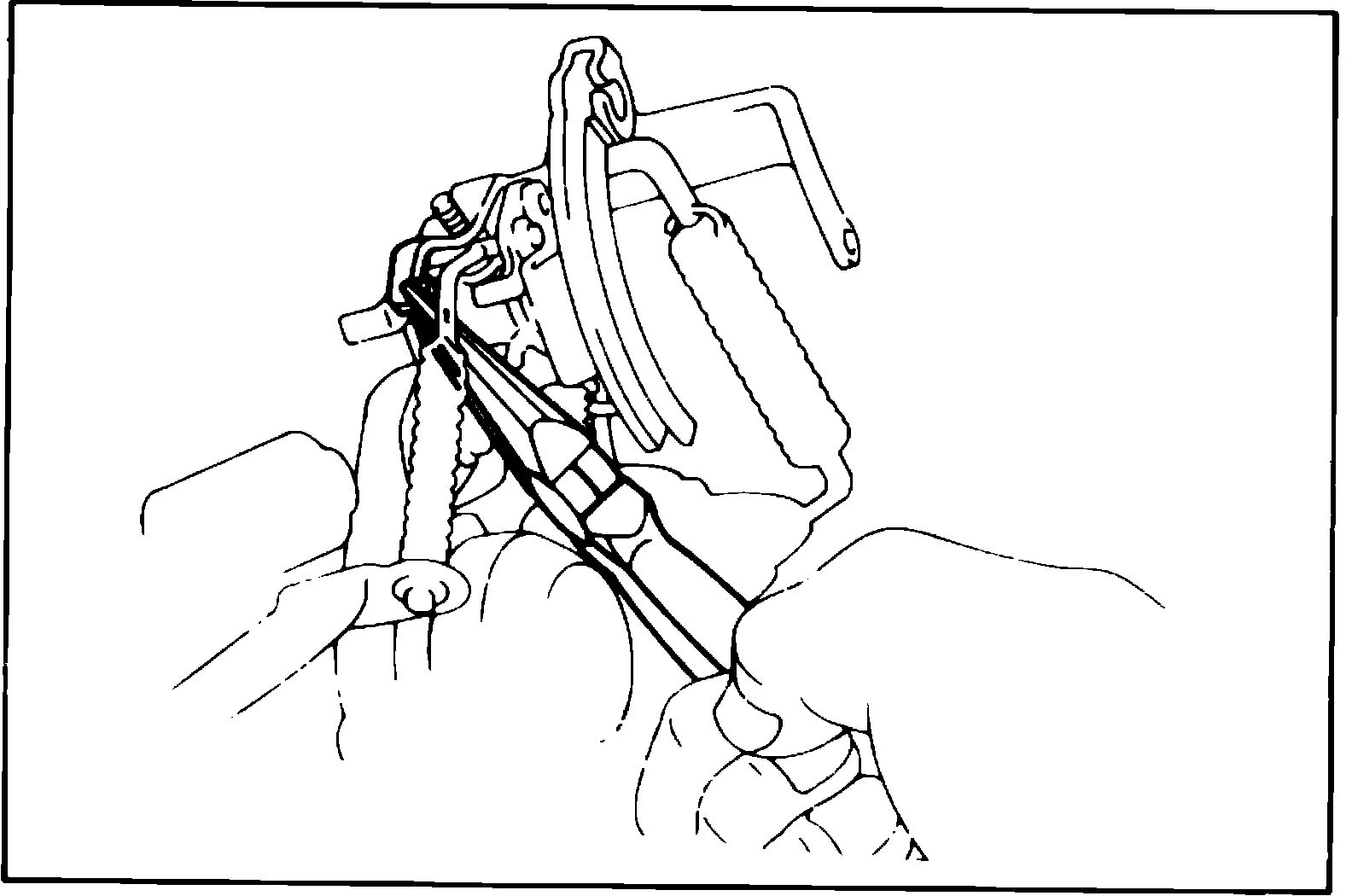

Fig. 10 Adjusting choke unloader:

1. With primary throttle valve fully open, measure choke valve-to-primary bore clearance.
2. Compare measurement to Adjustment Specifications.
3. If measurement is not within specifications, adjust by bending fast idle lever, Fig. 10.
