Rear Hub and Bearing

REAR HUB/BEARING

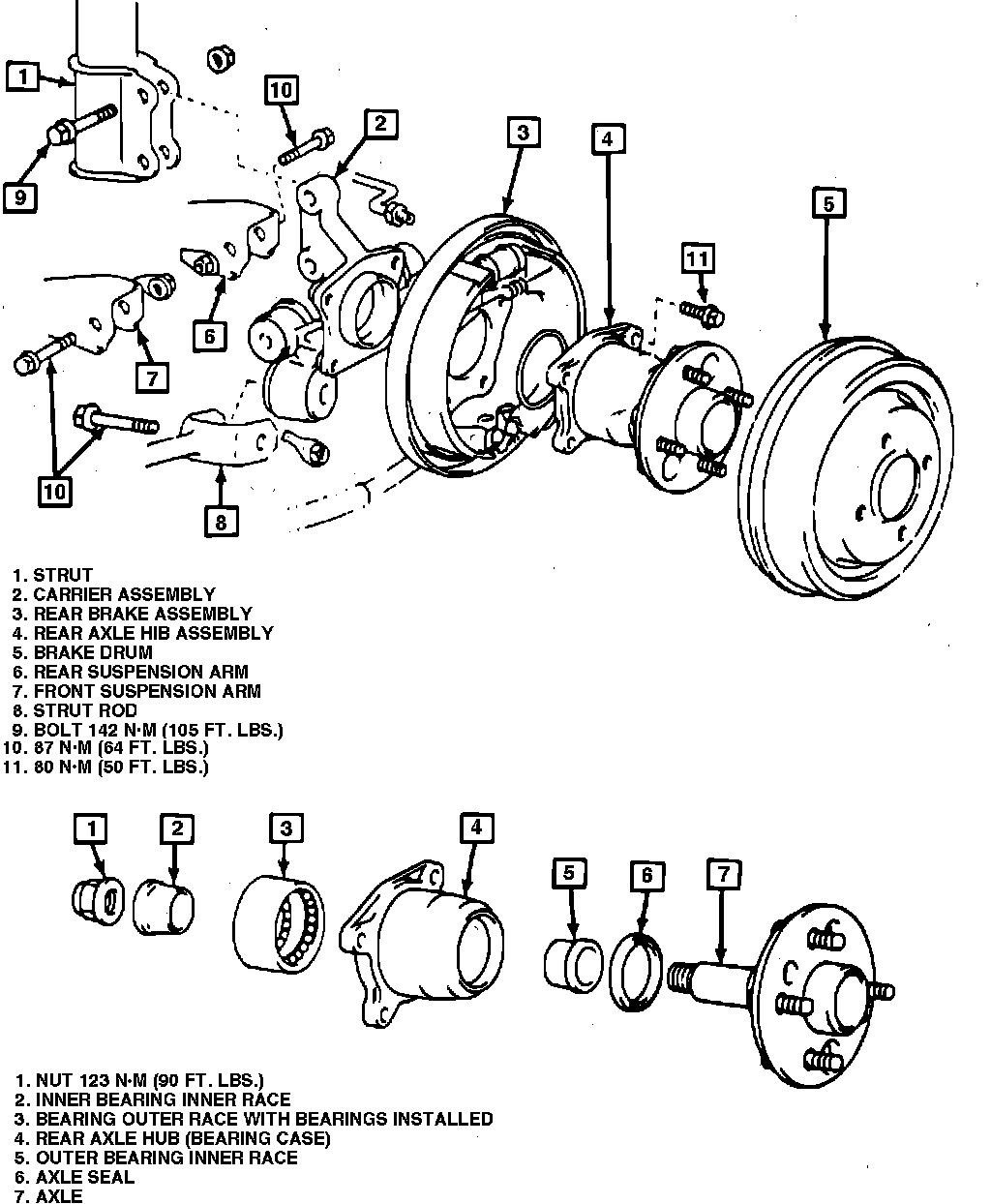

Fig. 1 Rear hub assembly:

1. Raise and support vehicle.
2. Remove wheel and tire assembly.
3. Remove brake drum, Fig. 1.
4. Remove four bolts attaching axle hub and rear brake assembly.
5. Remove hub, brake assembly and O-ring.
6. Reverse procedure to install.
