Hub Replace

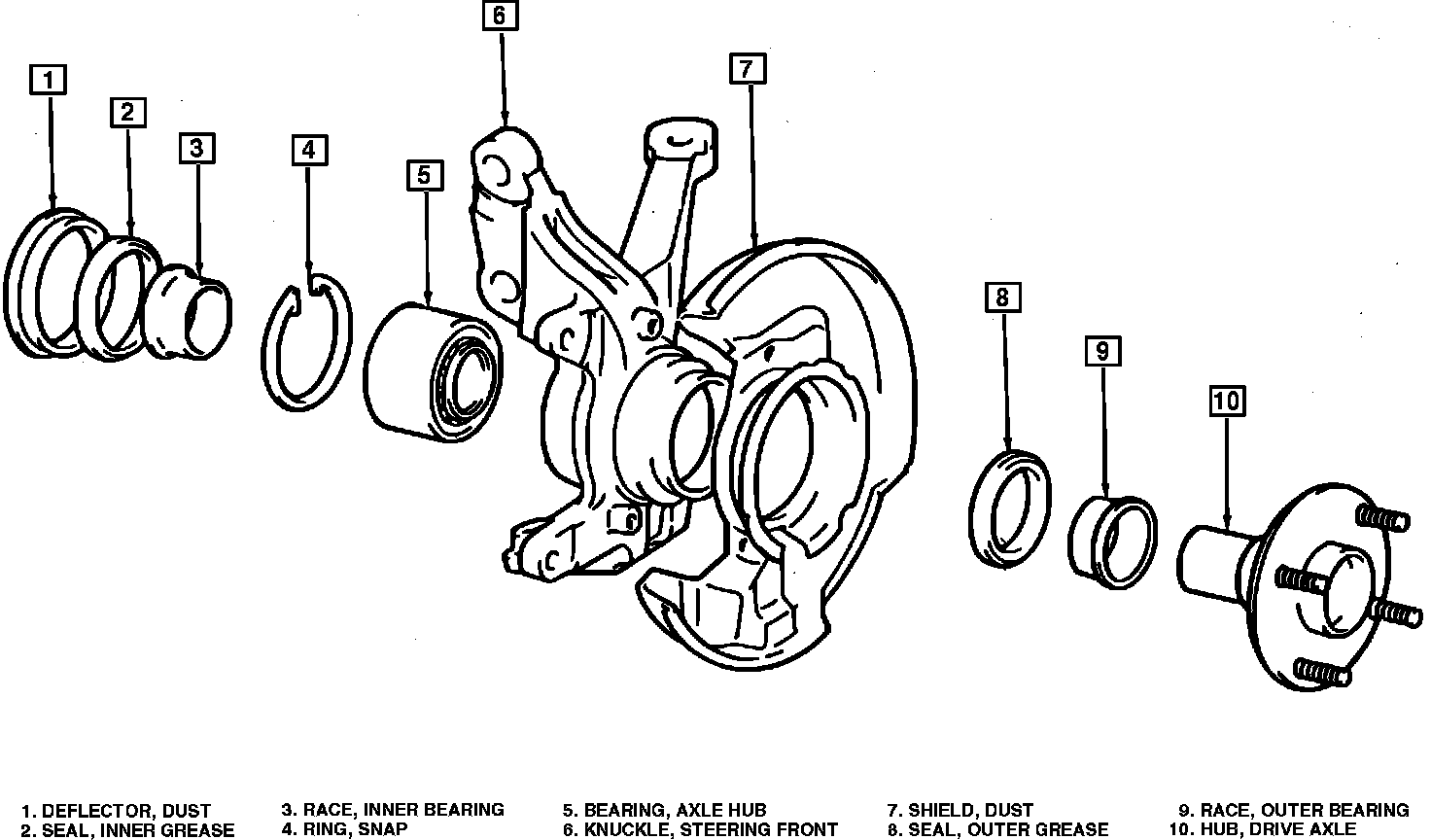

FRONT HUB AND ROTORFig. 2 Disassembled view of hub & bearing assembly:
1. Remove knuckle from vehicle and mount into a suitable vise.
2. Using a suitable screwdriver, remove dust deflector.
3. Using tool J-26941 or equivalent, remove inner grease seal from knuckle, Fig. 2.
4. Remove inner bearing snap ring and disc brake dust shield.
5. Push out hub using tool J-25287 and J-35378 or equivalents.
6. Using tools mentioned in step 5, remove outer bearing race from hub.
7. Using tool J-26941 or equivalent, remove outer grease seal.
8. Using tools J35399 and J-35379 or equivalents, remove bearing assembly.
9. Reverse procedure to install. Use tool J-8092 and J-35411 to install hub bearing assembly. Use tool J-35737 to install outer grease seal. Install hub using tools J-8092 and J-35399. Use tool J-35737 to install inner grease seal. Use tool J-35379 to install dust deflector ring. Ensure dust deflector ring faces down (open end down).
