Chevrolet
>>
1985
>>
Nova/Chevy II L4-1600cc 4ALC Nummi
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
Tail Lamp
Tail Lamp

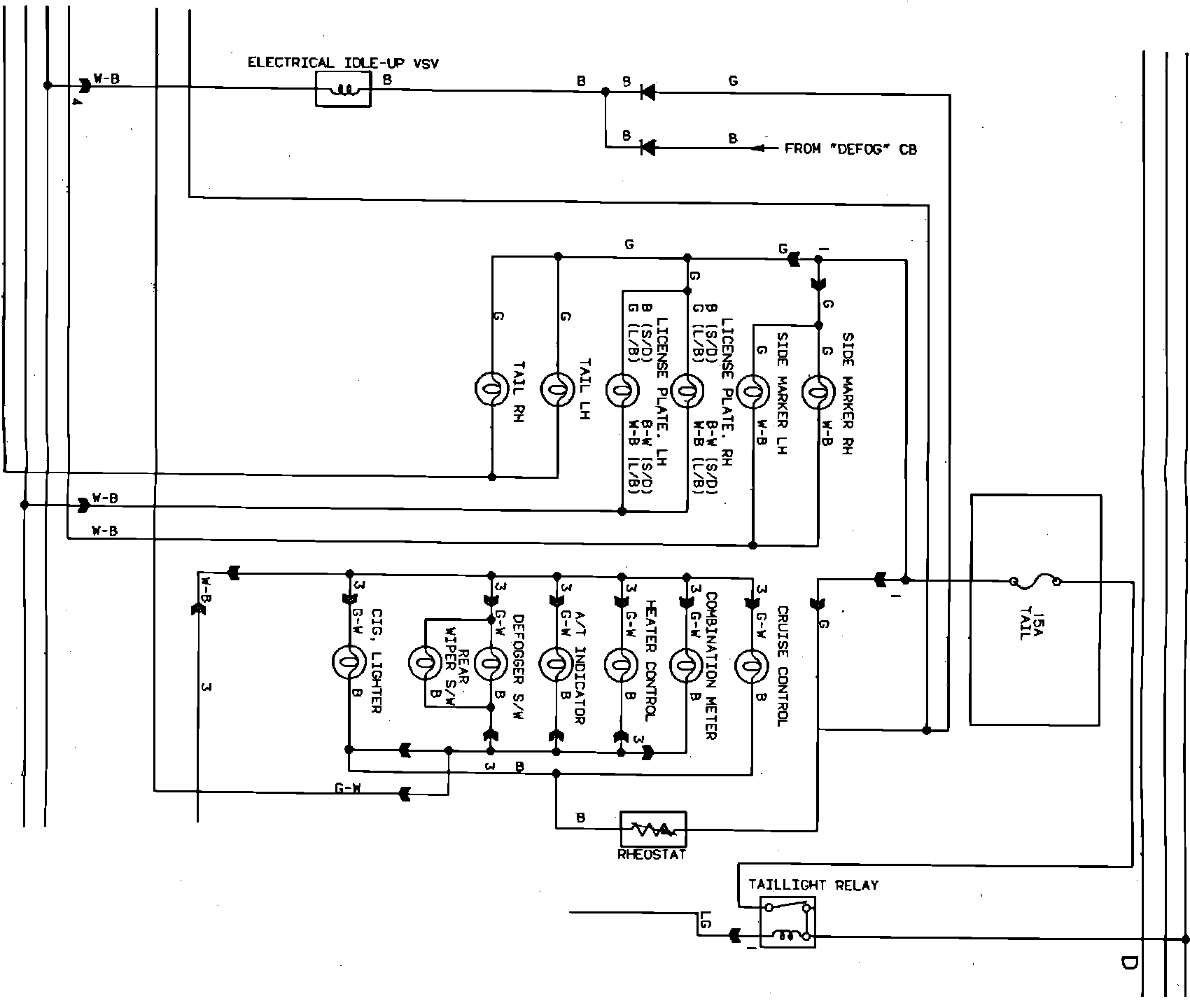

Idle Step-Up, Taillight & Illumination:
