A/T - Intermediate Servo Bleed Orifice Eliminated

91chevy10

Number: 86-40

Section: 7A

Date: MAR., 1986


Subject:
INTERMEDIATE SERVO ORIFICE ELIMINATED


Model and Year:
1985-86 THM 125 and 125C EQUIPPED VEHICLES

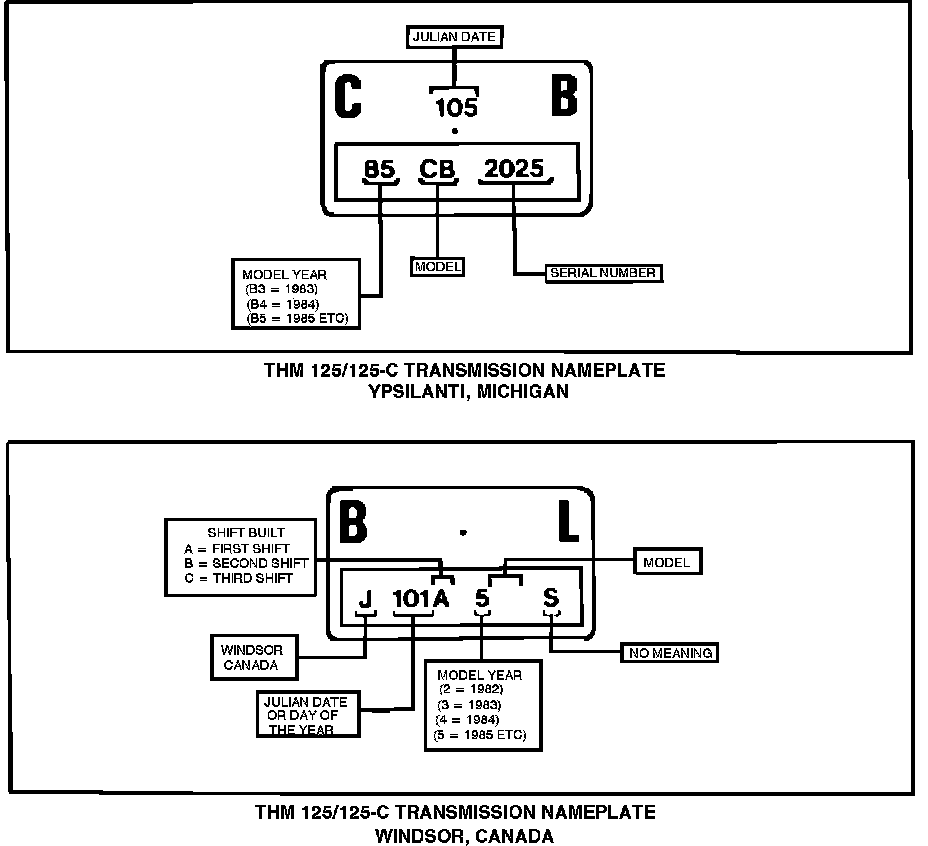

Figure 3:

Beginning April 15, 1985 (Julian date 105) for U.S. models, and April 11, 1985 (Julian date 101) for Canadian models (Refer to Figure 3), 125 and 125C transaxles are being produced using a case with the intemediate servo bleed orifice eliminated.

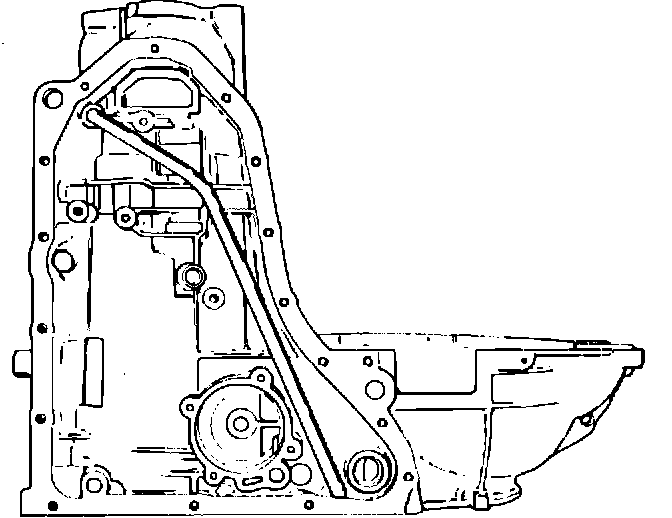

Figure 1:

Figure 2:

Either transaxle case is used for all applications in service.

Use Figure 2 to update your 1985 Service Manual. Figure 1 shows past design.
