Home
>>
Chevrolet
>>
1985
>>
Citation II L4-151 2.5L VIN R TBI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Windows
>>
4 Door
4 Door

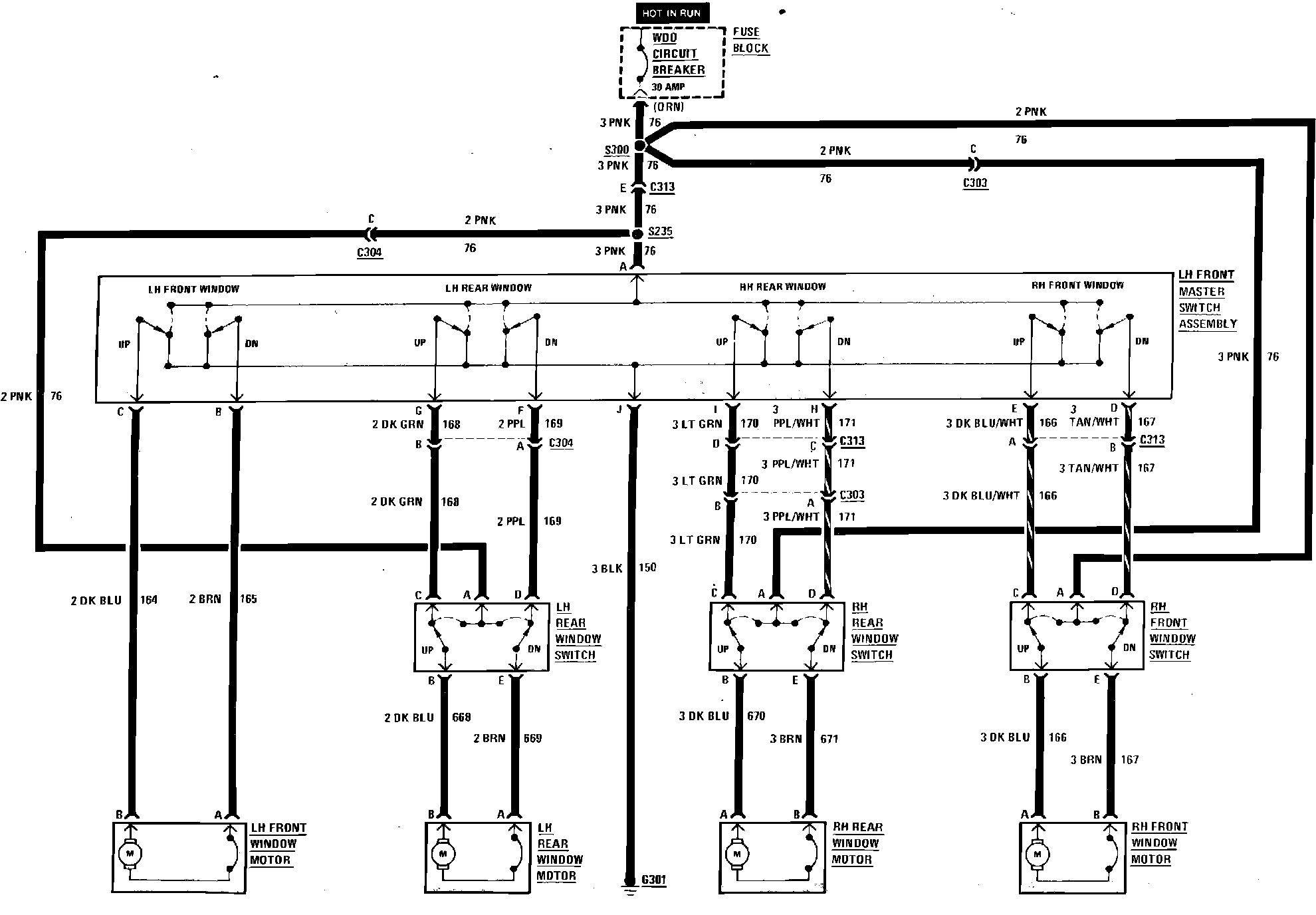

Fig. 82 Power Window Wiring Circuit. 4 Door:
