Chevrolet
>>
1985
>>
Citation II L4-151 2.5L VIN R TBI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Windows
>>
2 Door
2 Door

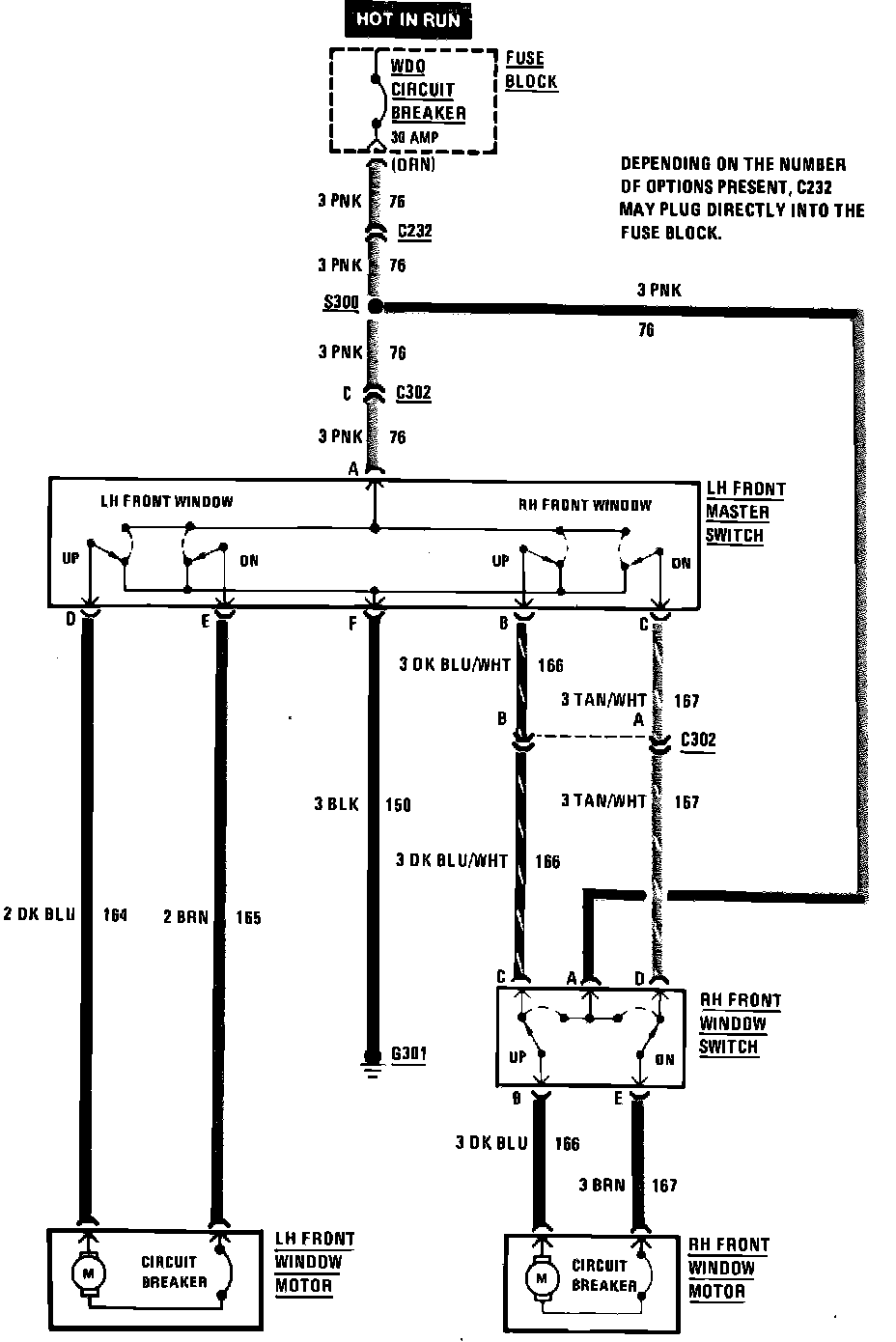

Fig. 81 Power Window Wiring Circuit. 2 Door:
