Chevrolet
>>
1985
>>
Citation II L4-151 2.5L VIN R TBI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>
Powertrain Controls
>>
With Electronic Fuel Injection (EFI)
>>
Fuel Control & Idle Air Control (IAC)
Fuel Control & Idle Air Control (IAC)

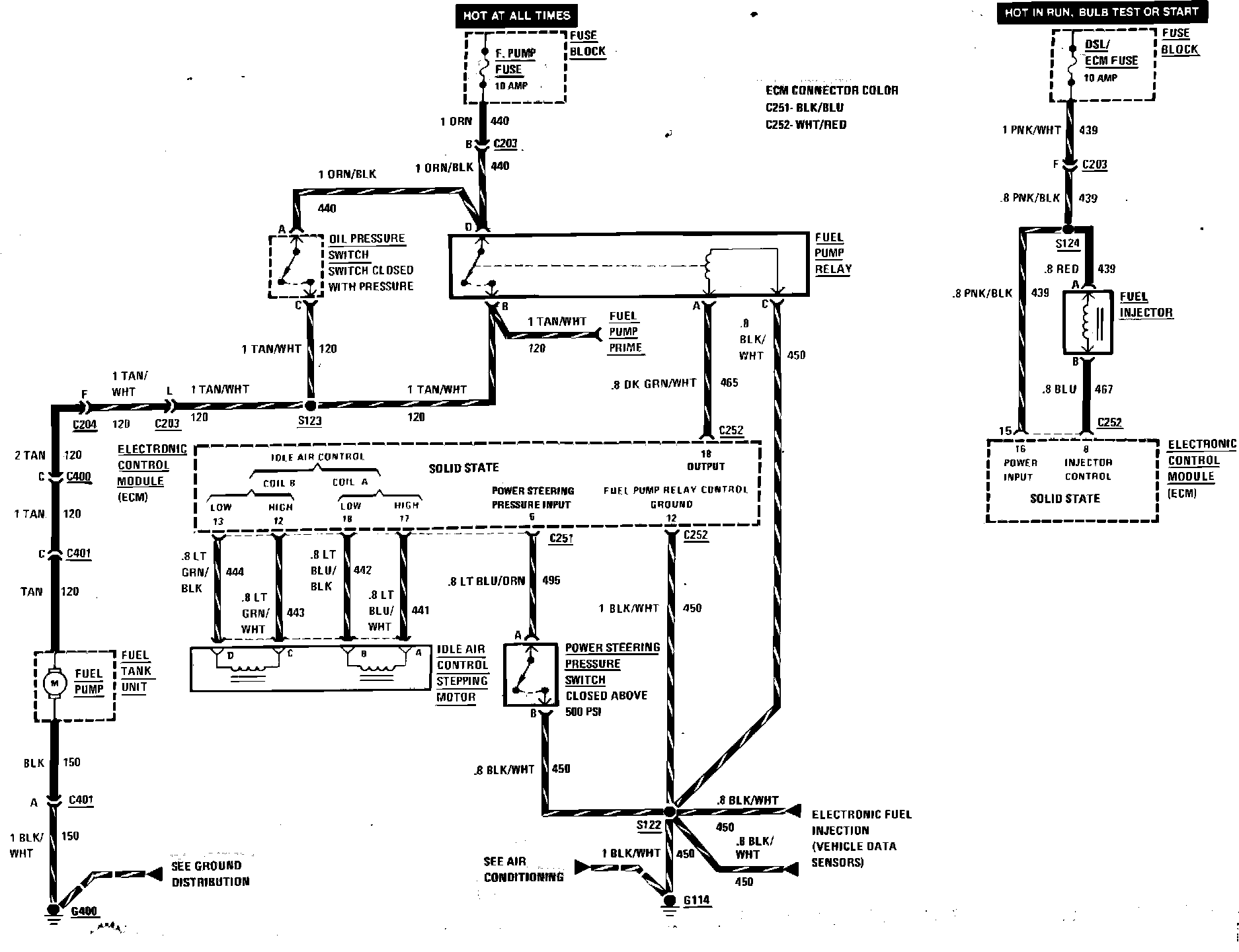

Fig. 44 Electronic Fuel Injection (Fuel Control & Idle Air Control):
