Check Engine Lamp & Ignition System

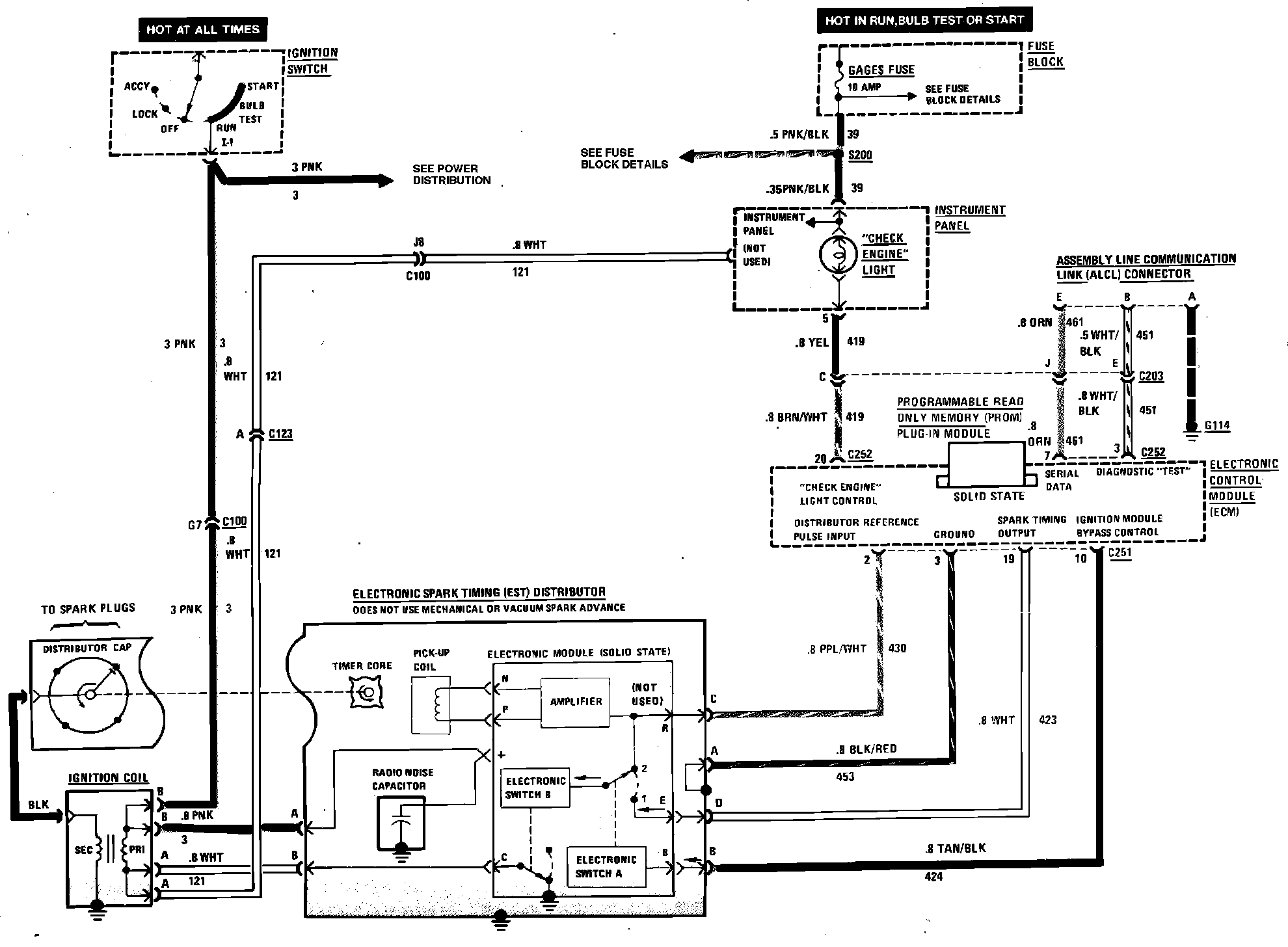

Fig. 42 Electronic Fuel Injection (Check Engine Light & Ignition).:
