Citation II L4-151 2.5L VIN R TBI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power Locks
>>
Four Door
Four Door

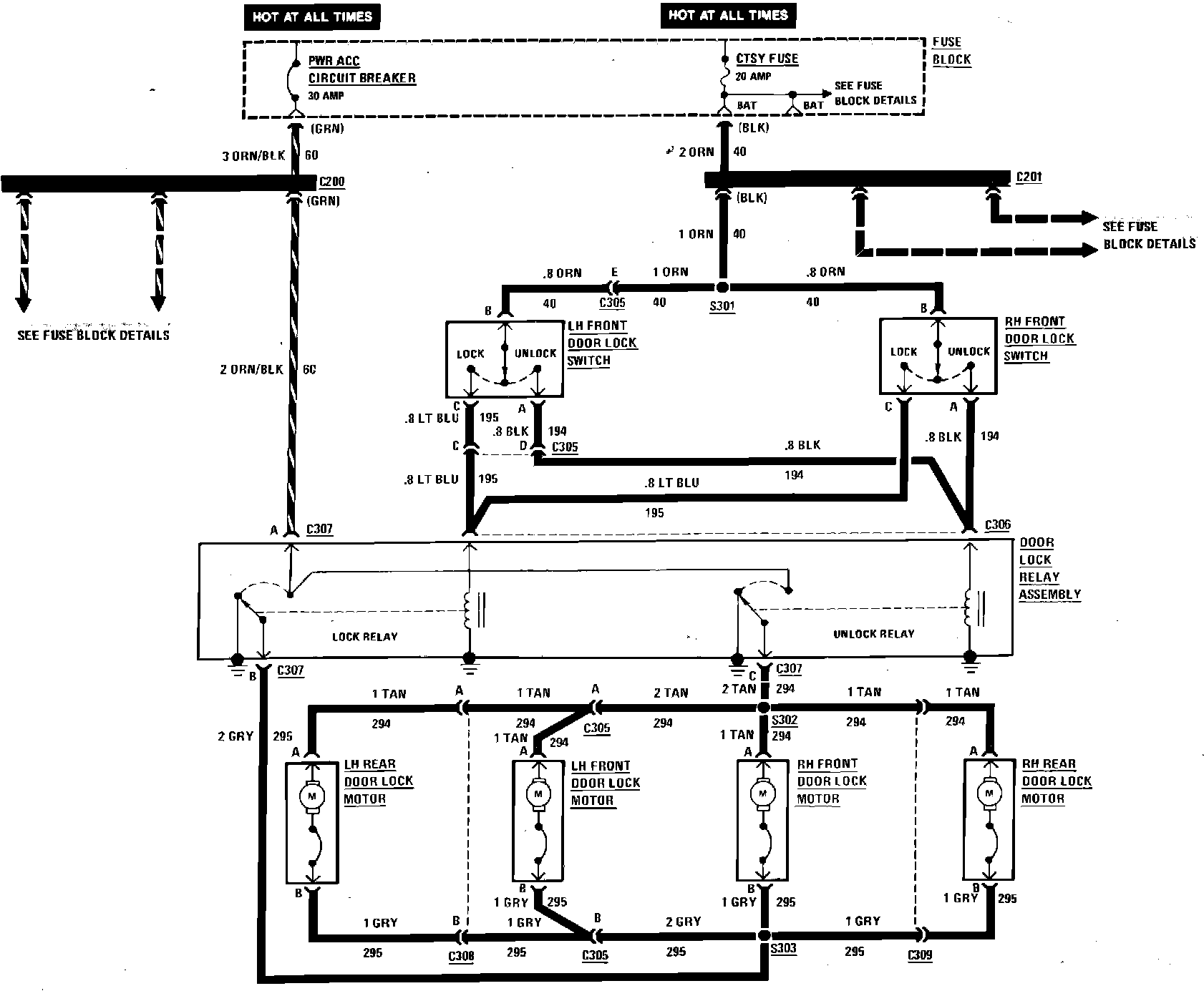

Fig. 78 Power Door Lock Wiring Circuit. 4 Door:
