Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
1985
>>
Celebrity V6-260 4.3L DSL
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Heated Glass Element
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

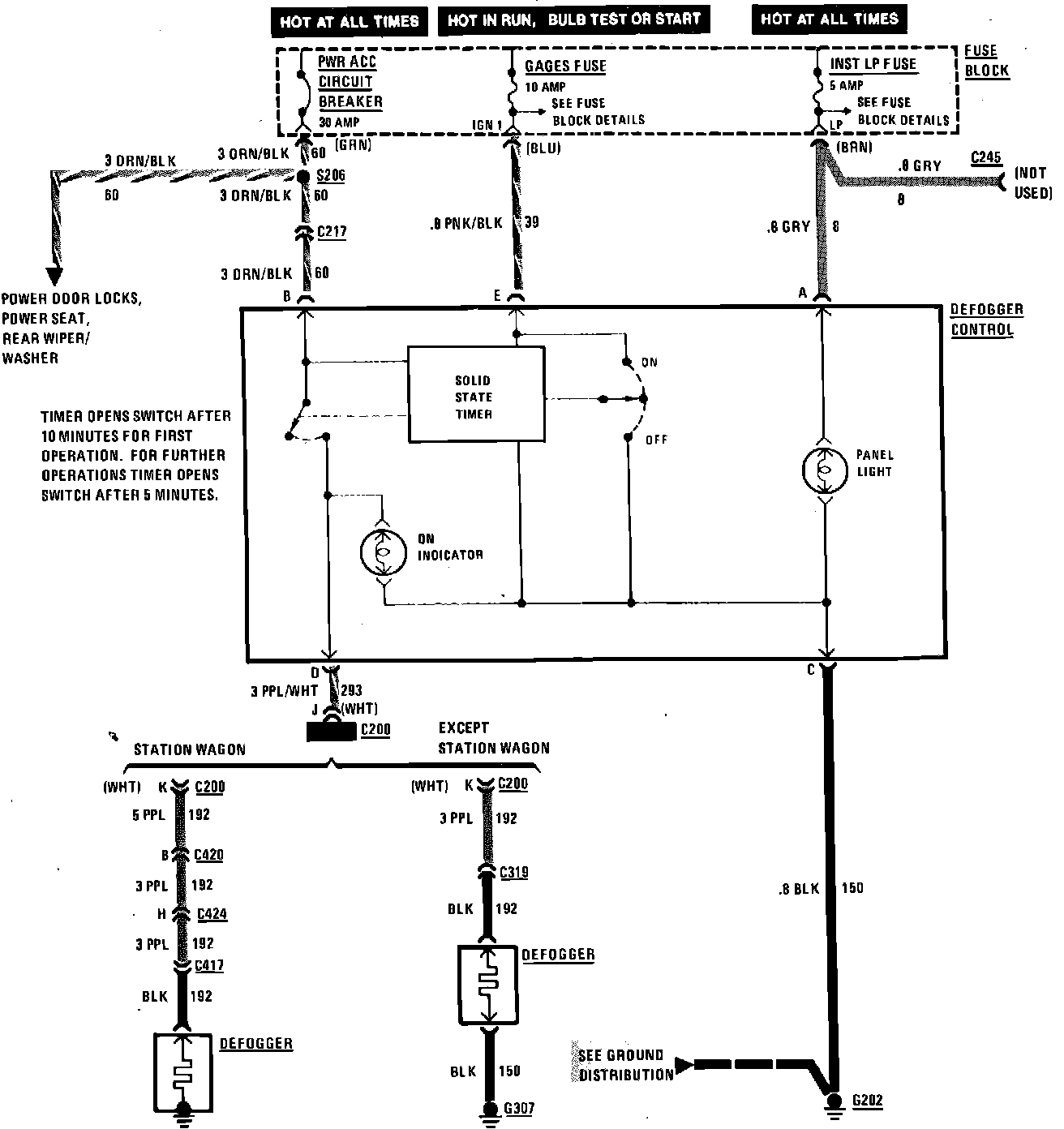

Fig. 251 Rear Window Defogger Wiring Circuit:
