Fuel Pump Fuse, Radio Fuse & Wiper Fuse
Fuel Pump Fuse, Radio Fuse & Wiper Fuse

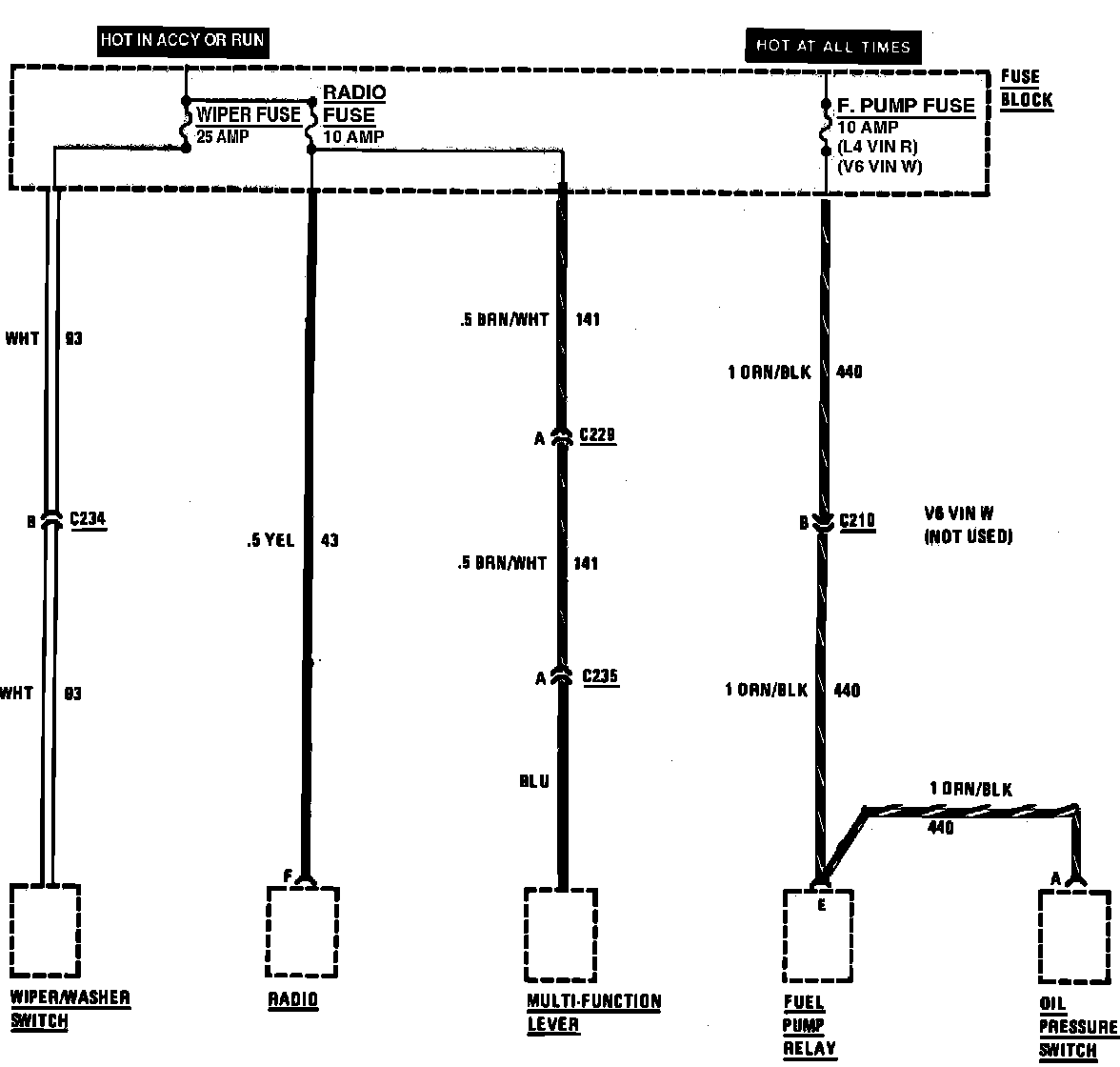

Fuse Block Details-Fuel Pump Fuse, Radio Fuse & Wiper Fuse:
