Celebrity V6-260 4.3L DSL
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Glow Plug System
>>
Testing and Inspection
>>
No Wait Lamp - Cold Engine
No Wait Lamp - Cold Engine

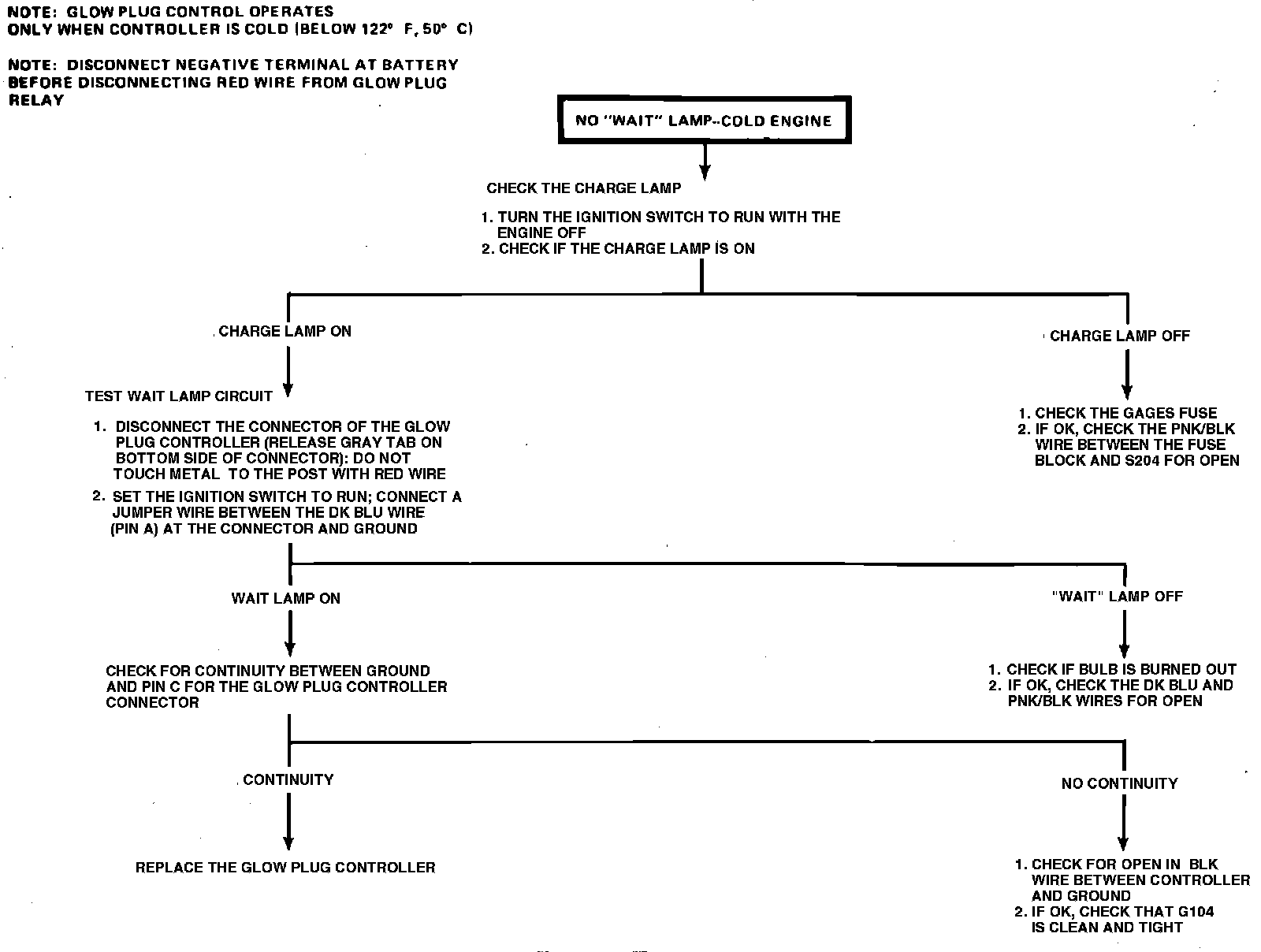

Fig. 5 Diesel engine electrical troubleshooting chart. 1984-85 Models:
