EPR Valve Vacuum System Diagnosis.
EPR Valve Vacuum System Diagnosis.

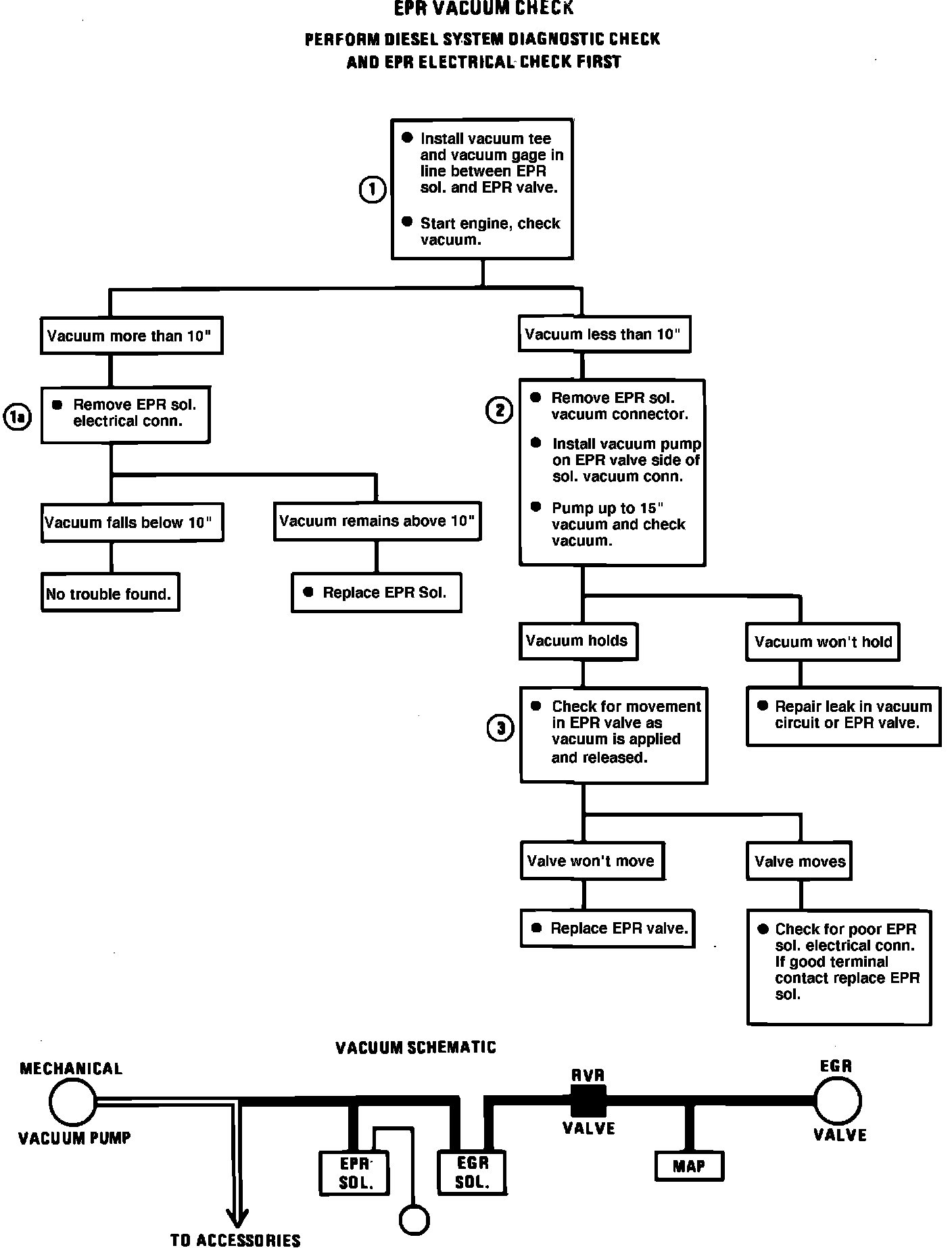

Fig. 9 DEC System EPR Valve Vacuum System Diagnosis:
