Diesel Electronic Control (DEC) System
>>
THM 200-4R Transmission
THM 200-4R Transmission

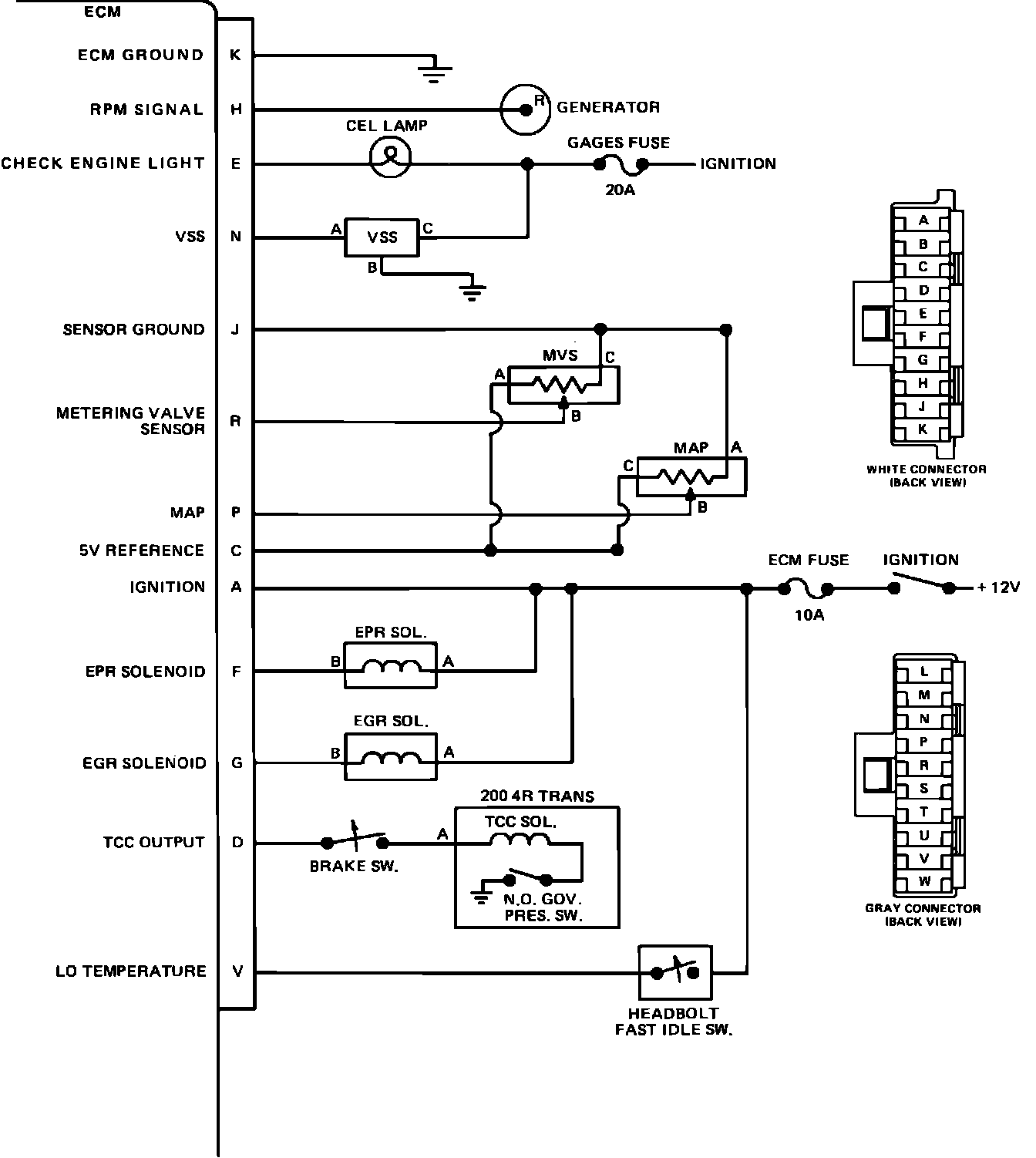

Fig. 17 DEC System Wiring Schematic. THM 200-4R Transmissions:
