Diesel Electronic Control (DEC) System
>>
THM 125C Transmission
THM 125C Transmission

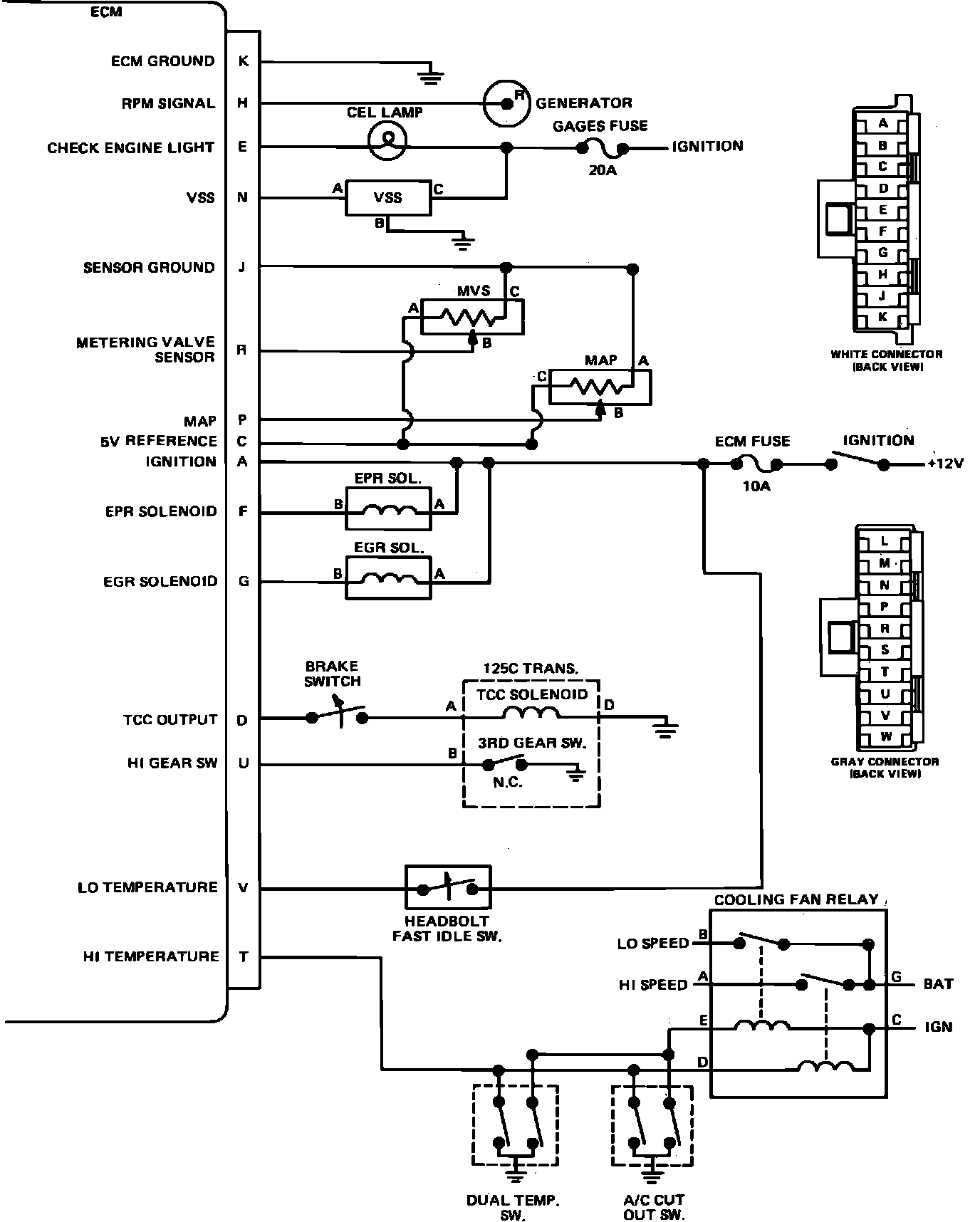

Fig. 16 DEC System Wiring Schematic. THM 125C Transmissions:
