Fuel Filter - Assembly Service Parts
Number: 85-15Section: 6C (VIm)
Date: Dec., 1984
Subject: V6 DIESEL FUEL FILTER ASSEMBLY SERVICE PARTS
Model and Year: 1984-85 CELEBRITY WITH 4.3L V6 DIESEL ENGINE AND NB9 FUEL FILTER SYSTEM
TO: ALL CHEVROLET DEALERS

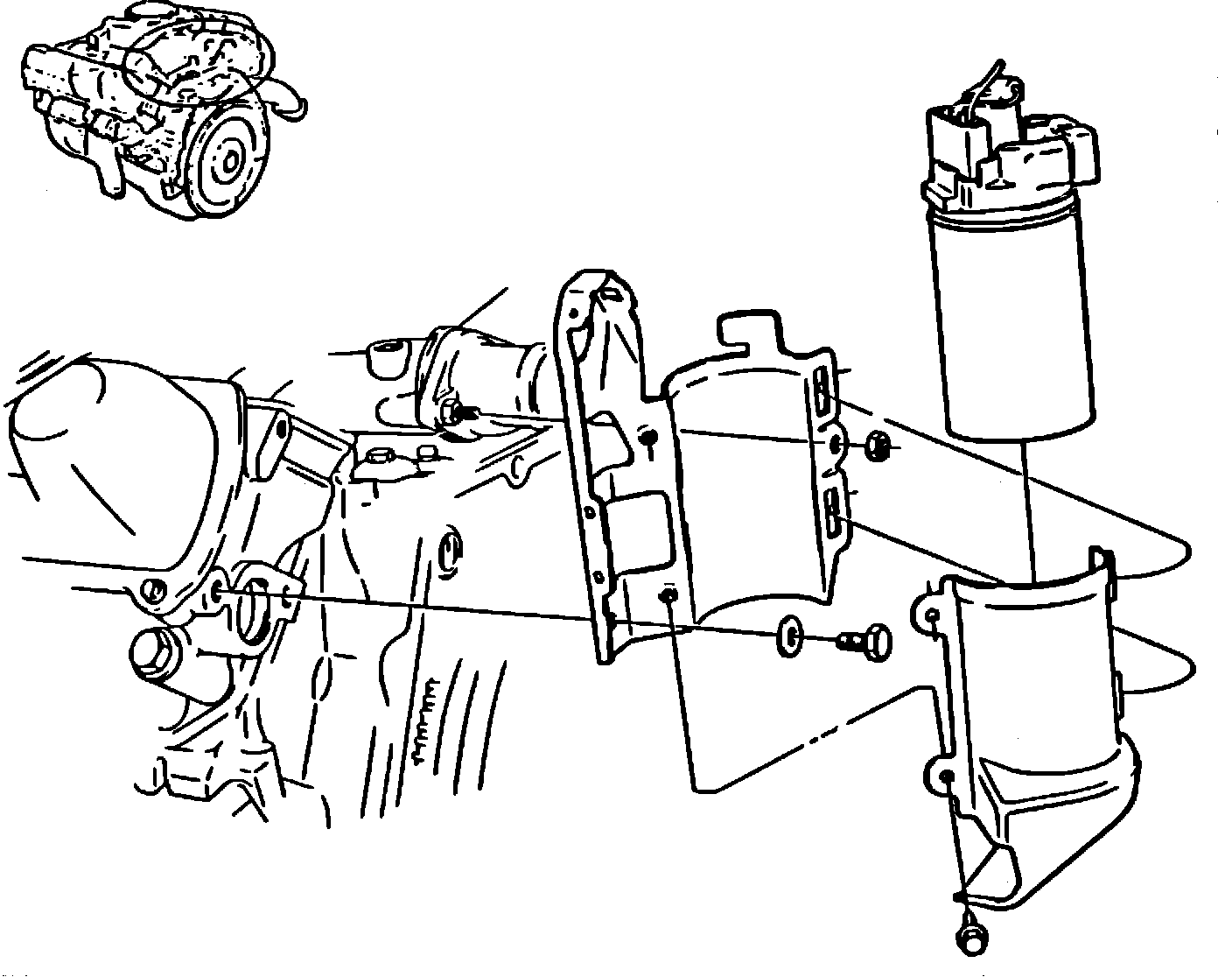

Parts to service the diesel fuel filter assembly used on the V6 diesel engine were not released into the service parts system. The parts shown in the illustration are now available to service the diesel fuel filter assembly.
Owners should be reminded that the fuel filter cartridge is to be replaced every 30,000 miles (48,000 km) as indicated in the Maintenance Schedule.
A/C No. WDDGM No. Description
T101 25011844 Fuel Filter Complete Assembly Without Heater
T101H 25011843 Fuel Filter Complete Assembly With Heater
TP1000 25011603 Fuel Filter
0F1007 25011836 Heater Package For Filter
0F1008 25011837 Water Detector Electronics
