Circuit Breaker
Circuit Breaker

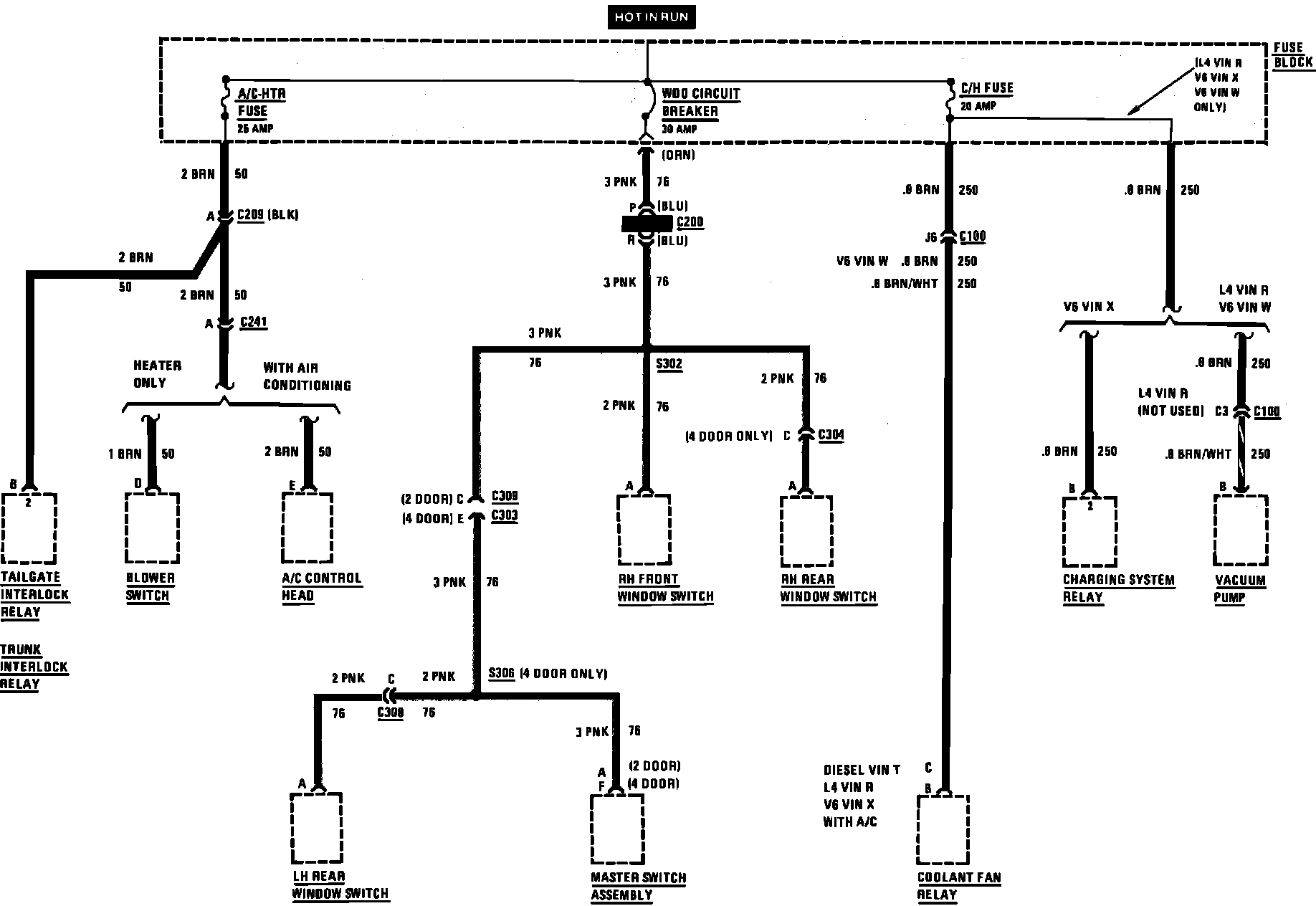

Fuse Block Details-Window Door Operation Circuit Breaker, A/C Heater Fuse & C/H Fuse:
