Home >> Chevrolet >> 1985 >> Celebrity V6-260 4.3L DSL >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radiator Cooling Fan Motor >> Less A/C

Less A/C

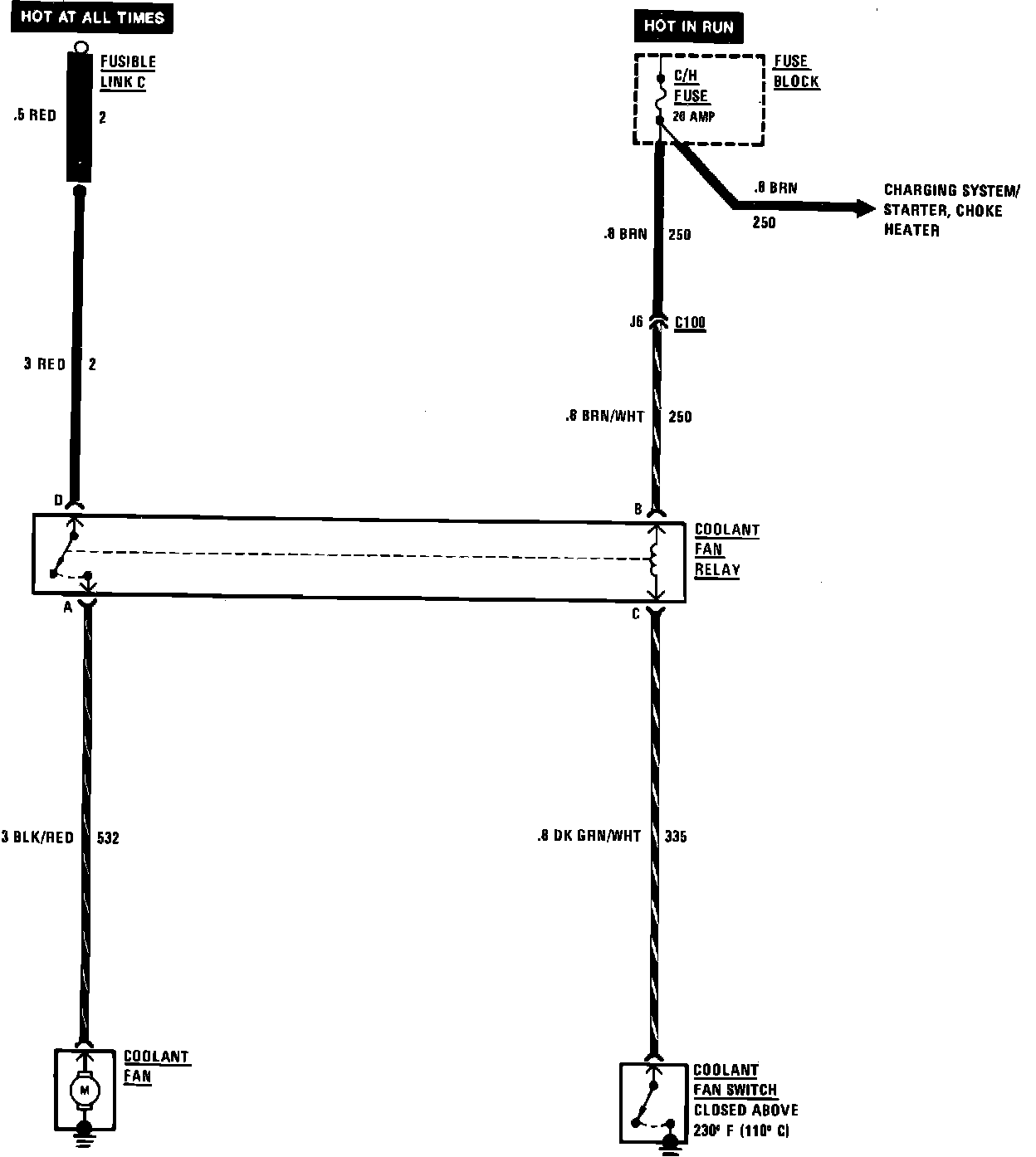

Fig. 103 Engine Cooling Fan Wiring Circuit - Less A/C:
