Torque Converter Clutch (TCC)

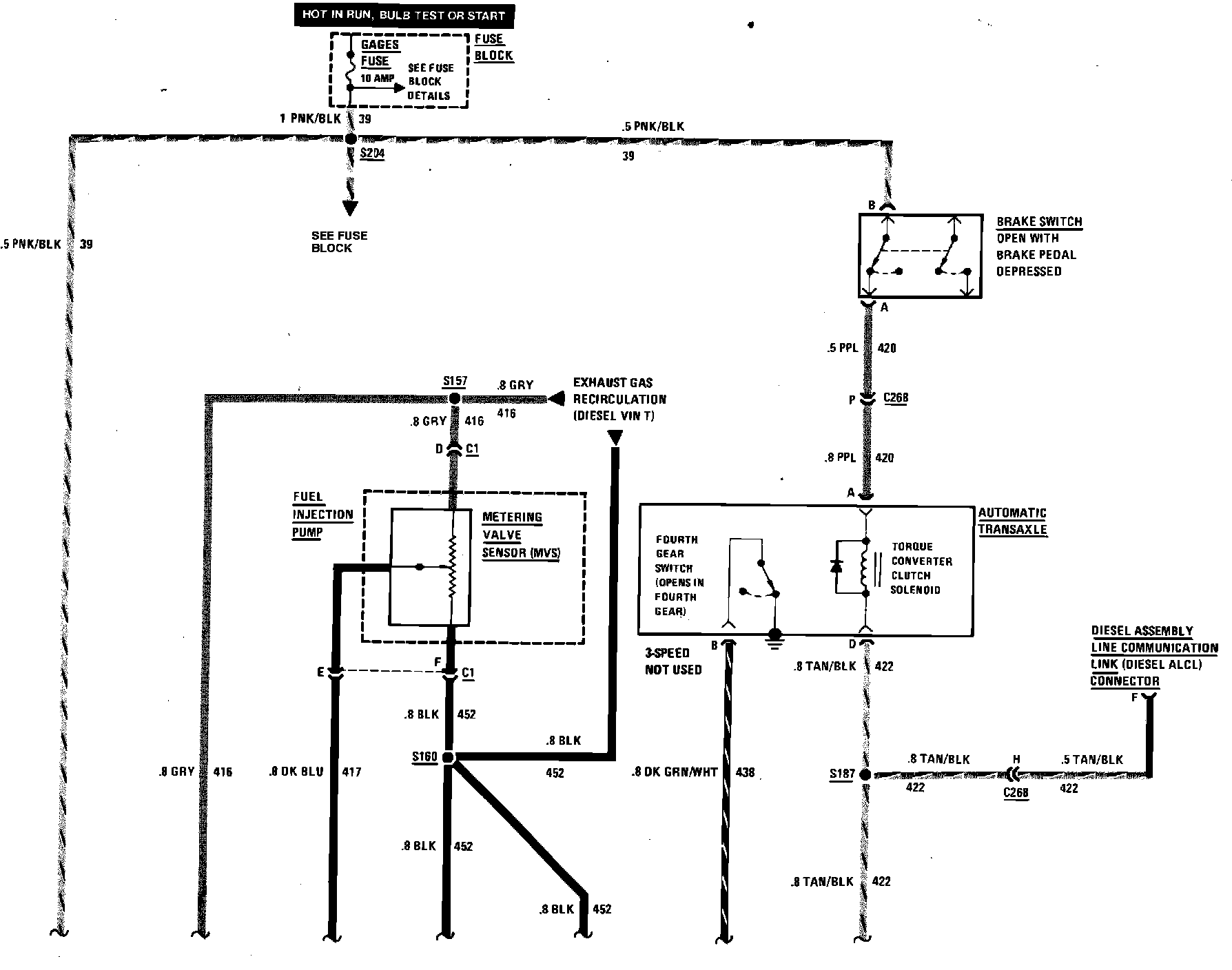

Fig. 267 Torque Converter Clutch Wiring Circuit (Part 1 of 2):

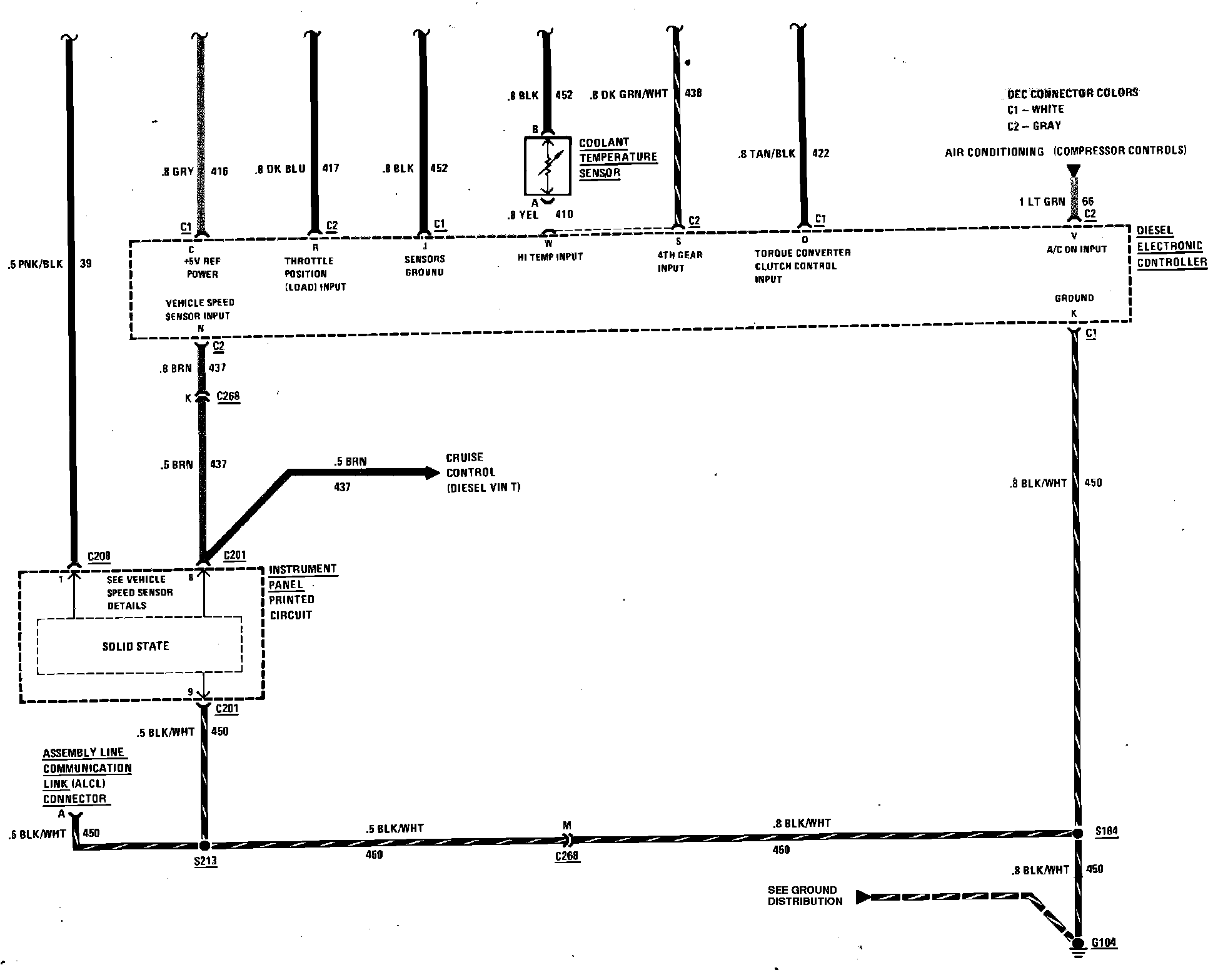

Fig. 267 Torque Converter Clutch Wiring Circuit (Part 2 of 2):
