Electrical Diagrams

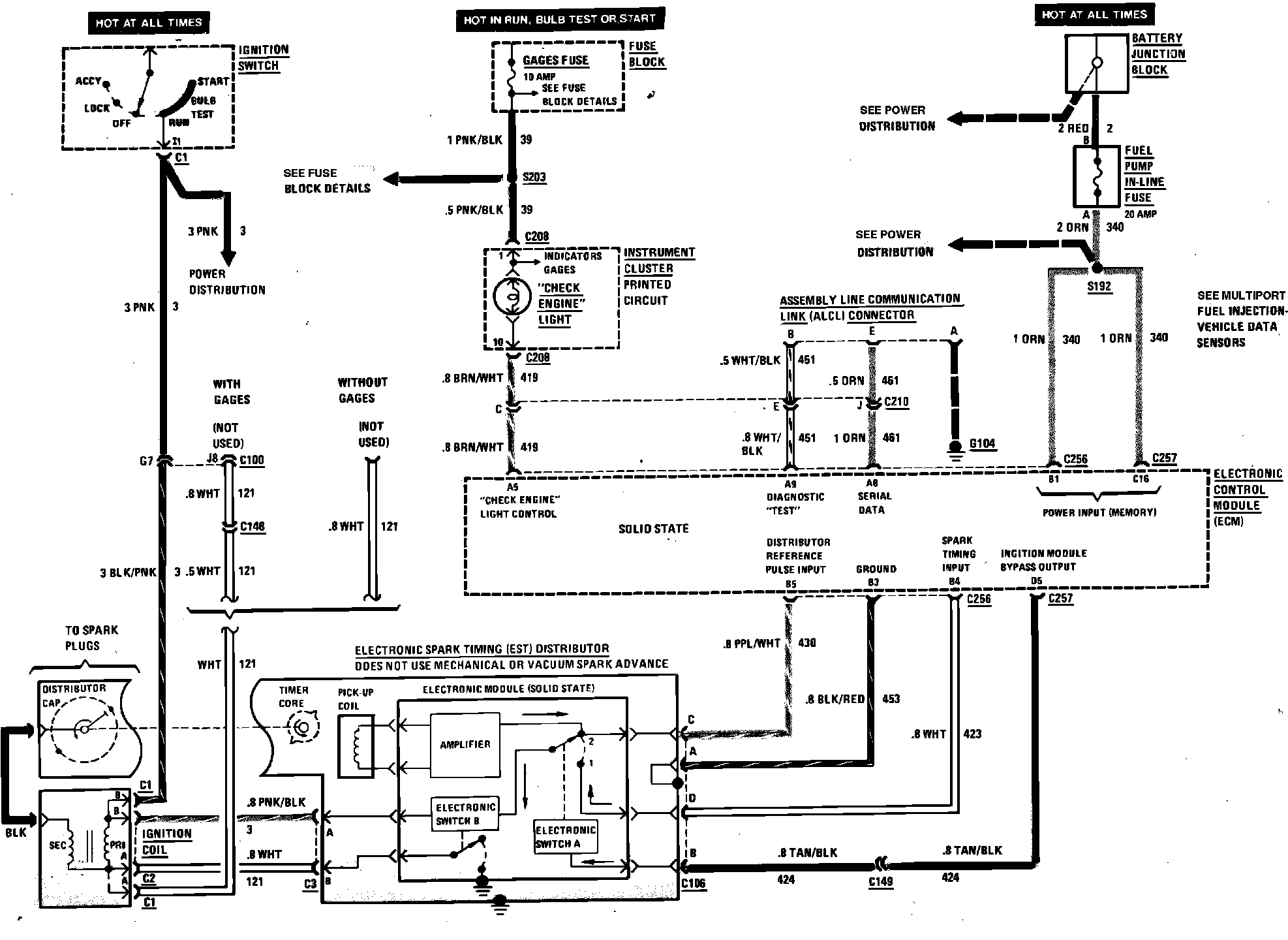

Fig. 190 Multiport Fuel Injection (Check Engine Light & Ignition) Wiring Circuit:
