Chevrolet
>>
1985
>>
Caprice V6-262 4.3L VIN Z TBI
>>
Repair and Diagnosis
>>
Cruise Control
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

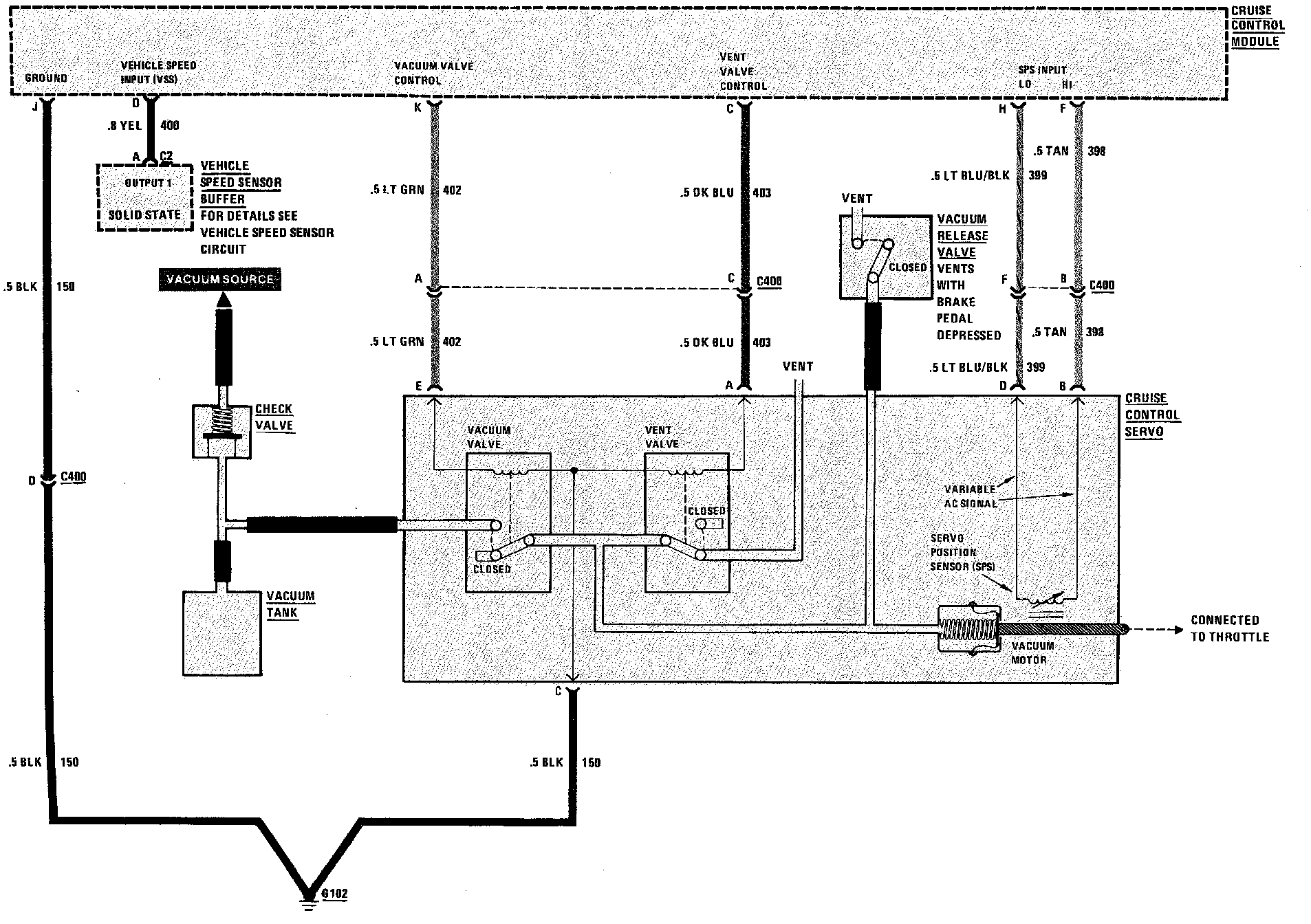

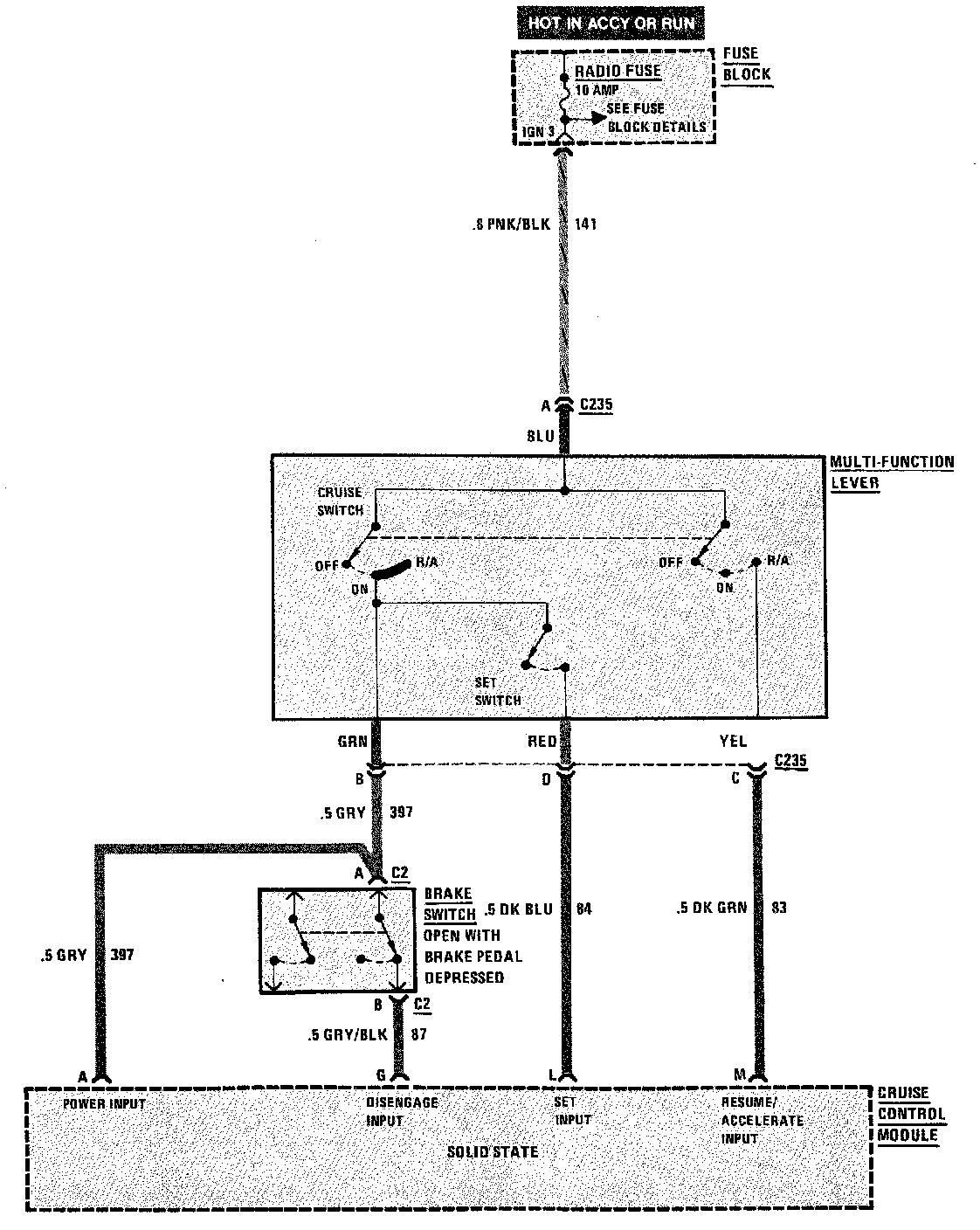

Cruise Control Wiring:
Cruise Control Wiring:
