Chevrolet
>>
1985
>>
Camaro V8-305 5.0L VIN H 4-bbl
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Diagrams
>>
Electrical Diagrams
>>
Starting System
Starting System

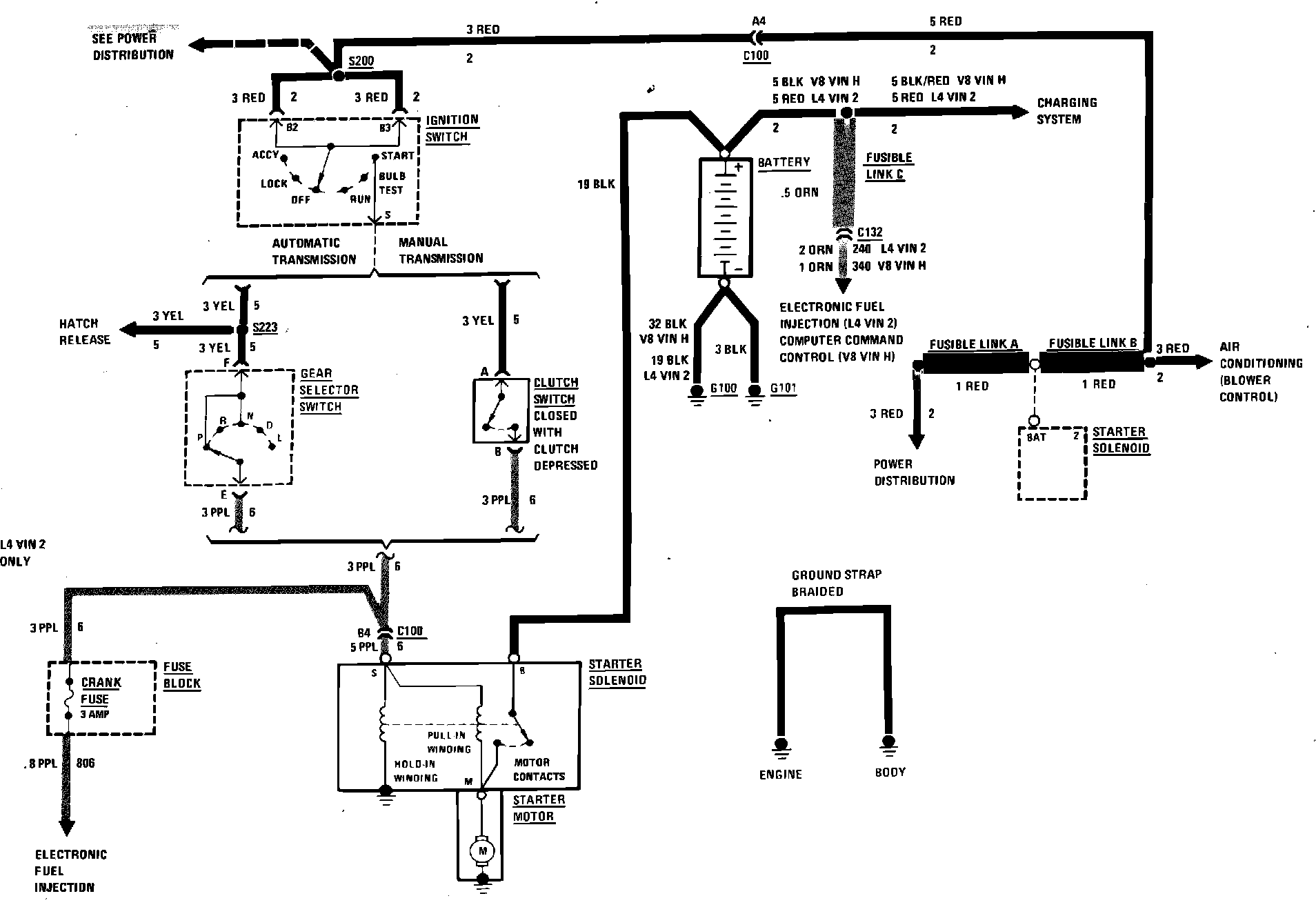

Starter Wiring Circuit - VIN-H:
