A/C Compressor - Moan or Vibration With A/C ON
Number: 87-34Section: 1B
Date: Dec., 1986
Subject: MOAN OR VIBRATION WITH
AIR CONDITIONING RUNNING
Model and Year: 1985-87 CAMARO WITH 5.0L
(VIN CODE F,G,H) OR 5.7L (VIN CODE 8) ENGINE AND AIR CONDITIONING
TO: ALL CHEVROLET DEALERS
Some 1985-87 Camaros equipped with 5.0L or 5.7L engines may exhibit a moan or engine vibration when the air conditioning compressor is engaged. This condition may be improved by the installation of a support brace to the A/C compressor mounting bracket. Refer to the Illustration for installation procedure.
The following components will be required:
PART NAME PART NUMBER NUMBER REQUIRED
Support Brace 10055819 1
Stud (3/8-16) 14057002 1
Bolt (3/8-16) 9440169 1
Nut (3/8-16) 14057004 1
NOTICE: THE STUD SHOULD BE COATED WITH THREAD SEALANT, P/N 1052080, PRIOR TO INSTALLATION.
Labor Operation Number: T1188
Labor Time : .4 Hours
A/C COMPRESSOR BRACEINSTALLATION:

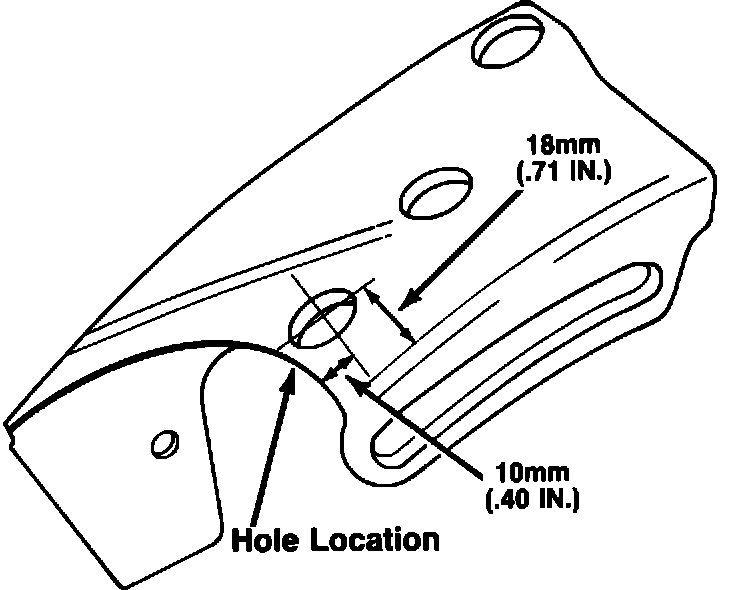

Step 1. Drill a 13/32 in. hole in the A/C compressor bracket as shown in the drawing below
A/C COMPRESSOR BRACEINSTALLATION:

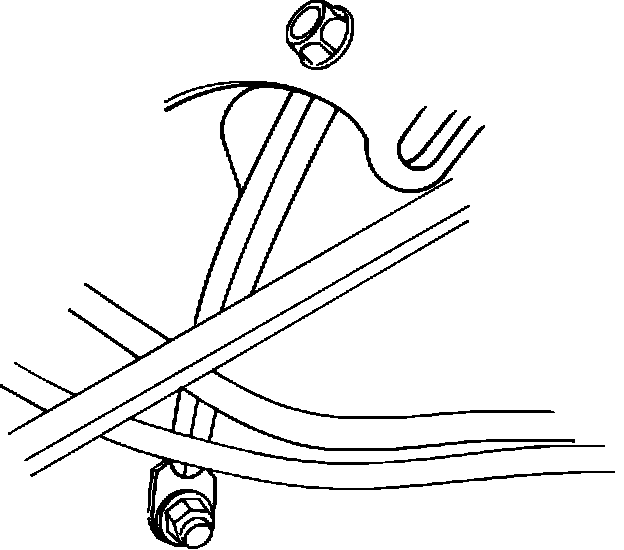

Step 2. Remove bolt from water pump at the 2 o'clock position and install stud P/N 14057002 (3/8 - 16)
Step 3. Attach support brace P/N 10055819 to A/C compressor bracket using bolt P/N 9440169 (3/8 - 16)
Step 4. Attach other end of support brace to stud on water pump using nut P/N 14057004 (3/8 - 16)
