Fuel Control, Idle Speed Control & Vehicle Data Sensors
Fuel Control, Idle Speed Control & Vehicle Data Sensors

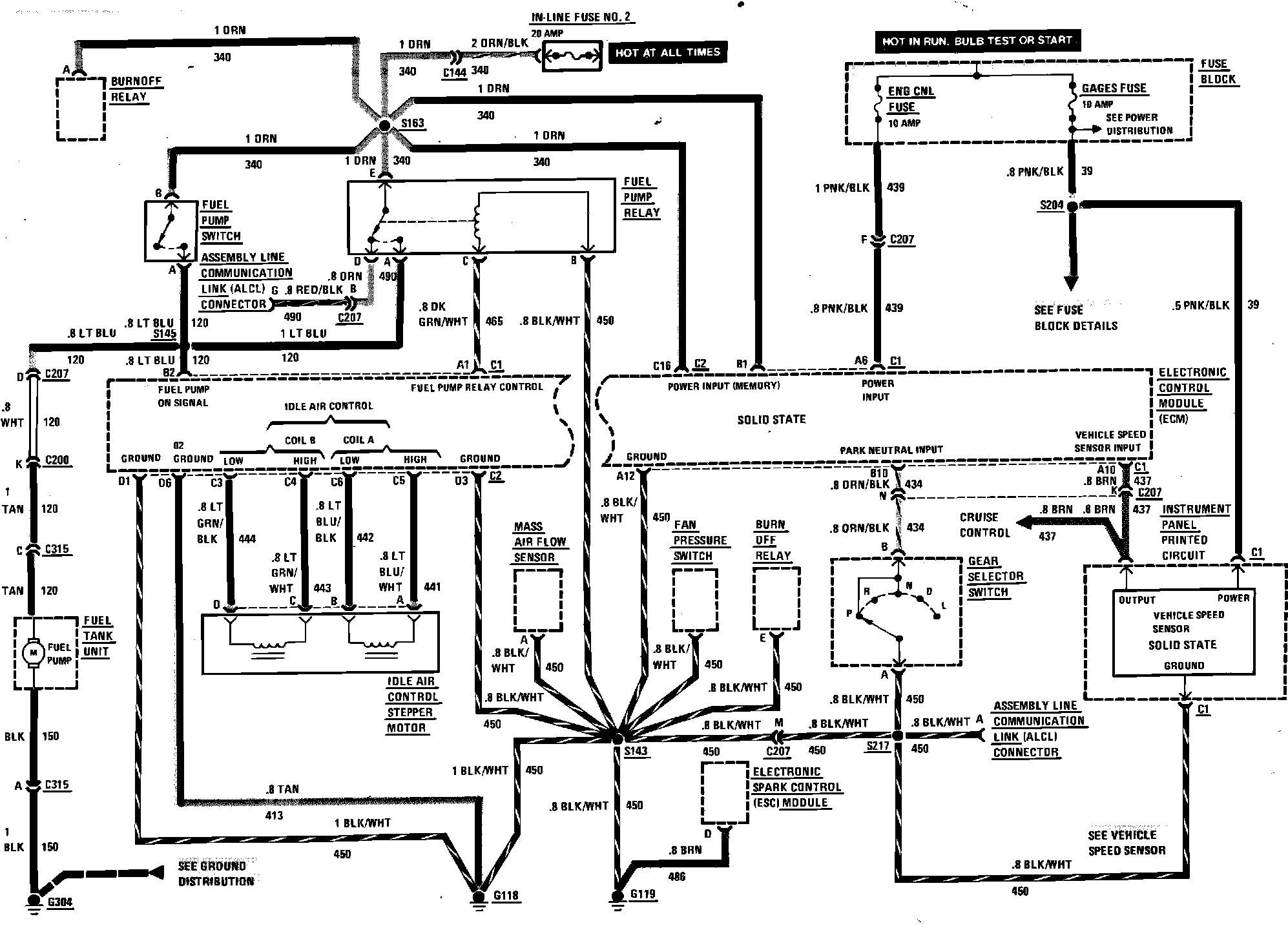

Tuned Port Fuel Injection (Fuel Control, Idle Speed Control & Vehicle Data Sensors) Wiring Circuit:
