Lateral Stabilizer Rod: Service and Repair

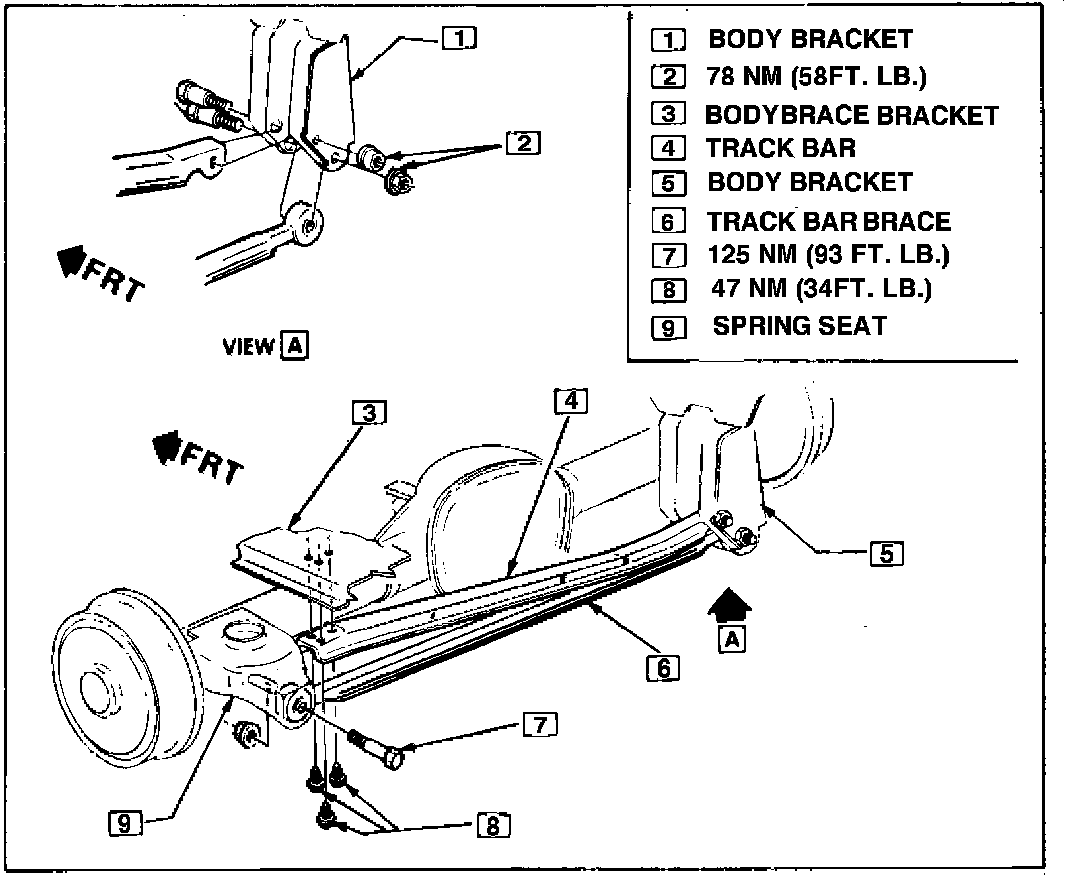

Fig. 18 Track bar & brace installation. Camaro:

CAMARO

1. Raise vehicle and support rear axle at curb height.
2. Remove track bar mounting bolt and nut from rear axle and from body bracket, then remove track bar, Fig. 18.
3. Remove heat shield attaching screws from track bar brace.
4. Remove three track bar brace to body brace screws.
5. Remove nut and bolt from body bracket, then remove track bar brace.
6. Reverse procedure to install.
