Headlamp Switch: Service and Repair

Fig. 4 Left control pod removal. 1984---86 Berlinetta:

1984-86 Berlinetta

1. Disconnect battery ground cable.
2. Remove instrument panel close-out panel and lower steering column cover.
3. Remove bottom front screw securing left control pod, then release pod retainer.
4. Disconnect left control pod electrical connector below instrument panel, Fig. 4.
5. Remove pod housing and screw securing control assembly to track.
6. Slide control assembly from track.
7. Reverse procedure to install.

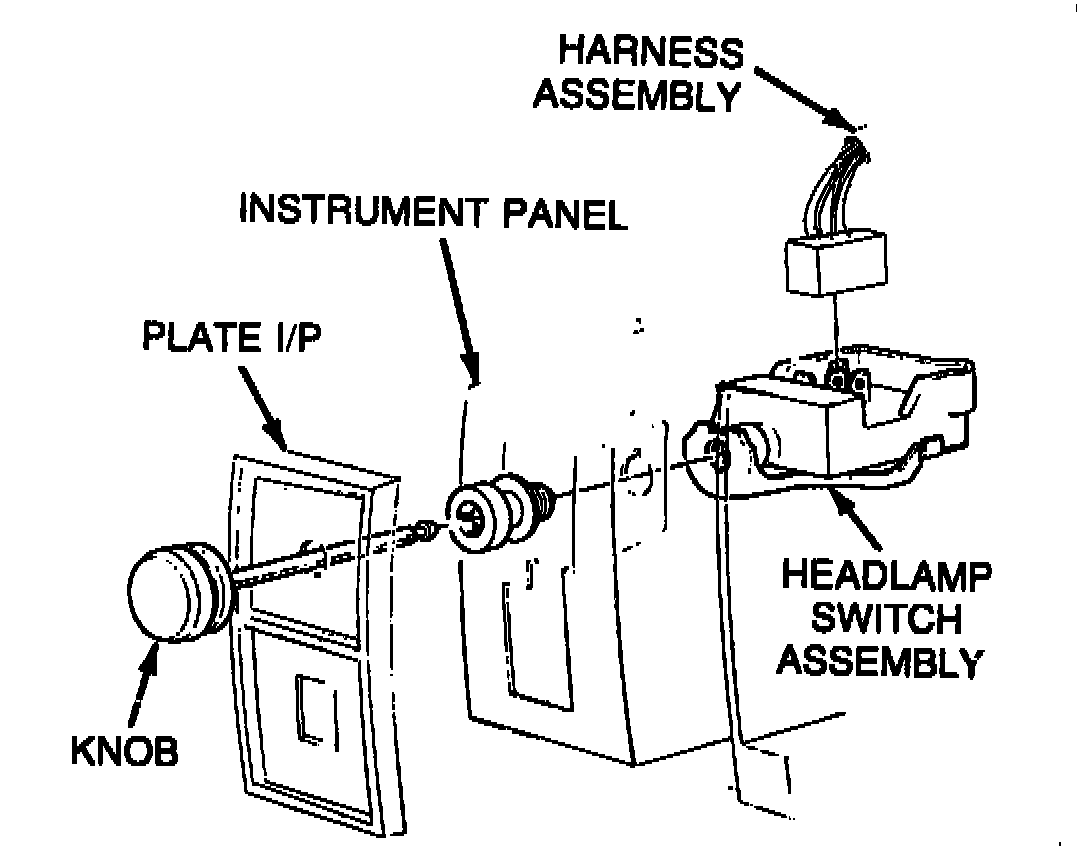

1985-88 (Exc.1984-86 Berlinetta)
1. Disconnect battery ground cable.
2. Remove right and left lower trim plates. Removal of lower I.P. cover(s) not required.
3. Remove 1.P. cluster trim plate.
4. Remove two(2) switch assembly retaining screws.
5. Depress side tangs and pull switch assembly from I.P.
6. Individual switches of assembly are now accessible for service or replacement.
7. Reverse removal procedure to reinstall.
