Chevrolet
>>
1985
>>
Camaro V6-173 2.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Wiper and Washer Systems
>>
Front
>>
Berlinetta
Berlinetta

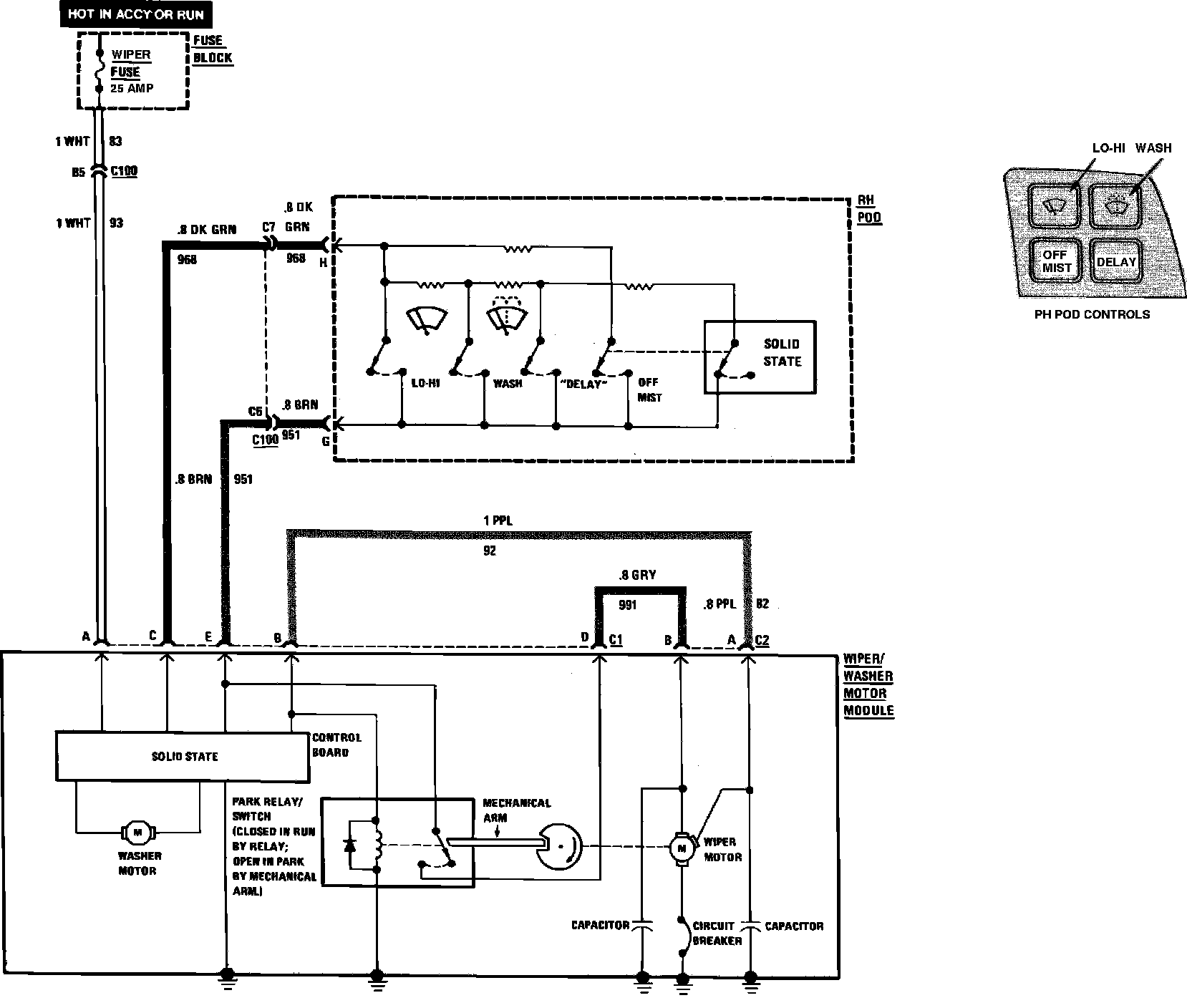

Wiper/Washer Wiring Circuit:
