Home
>>
Chevrolet
>>
1985
>>
Camaro V6-173 2.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radio, Stereo, and Compact Disc
>>
With Mono System
With Mono System

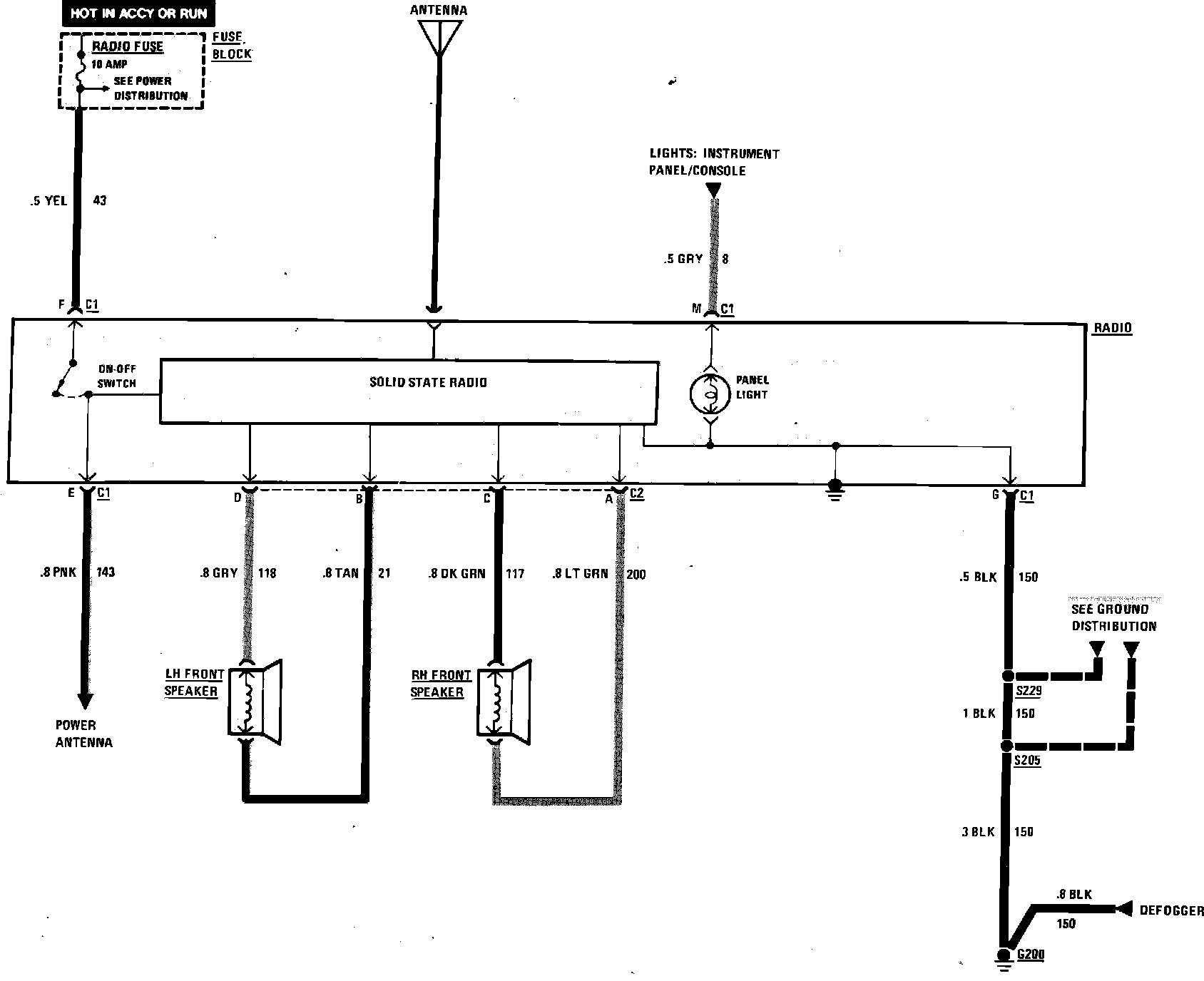

Radio Wiring Circuit With Mono System:
