Engine Data Sensors & Torque Converter Clutch
Engine Data Sensors & Torque Converter Clutch

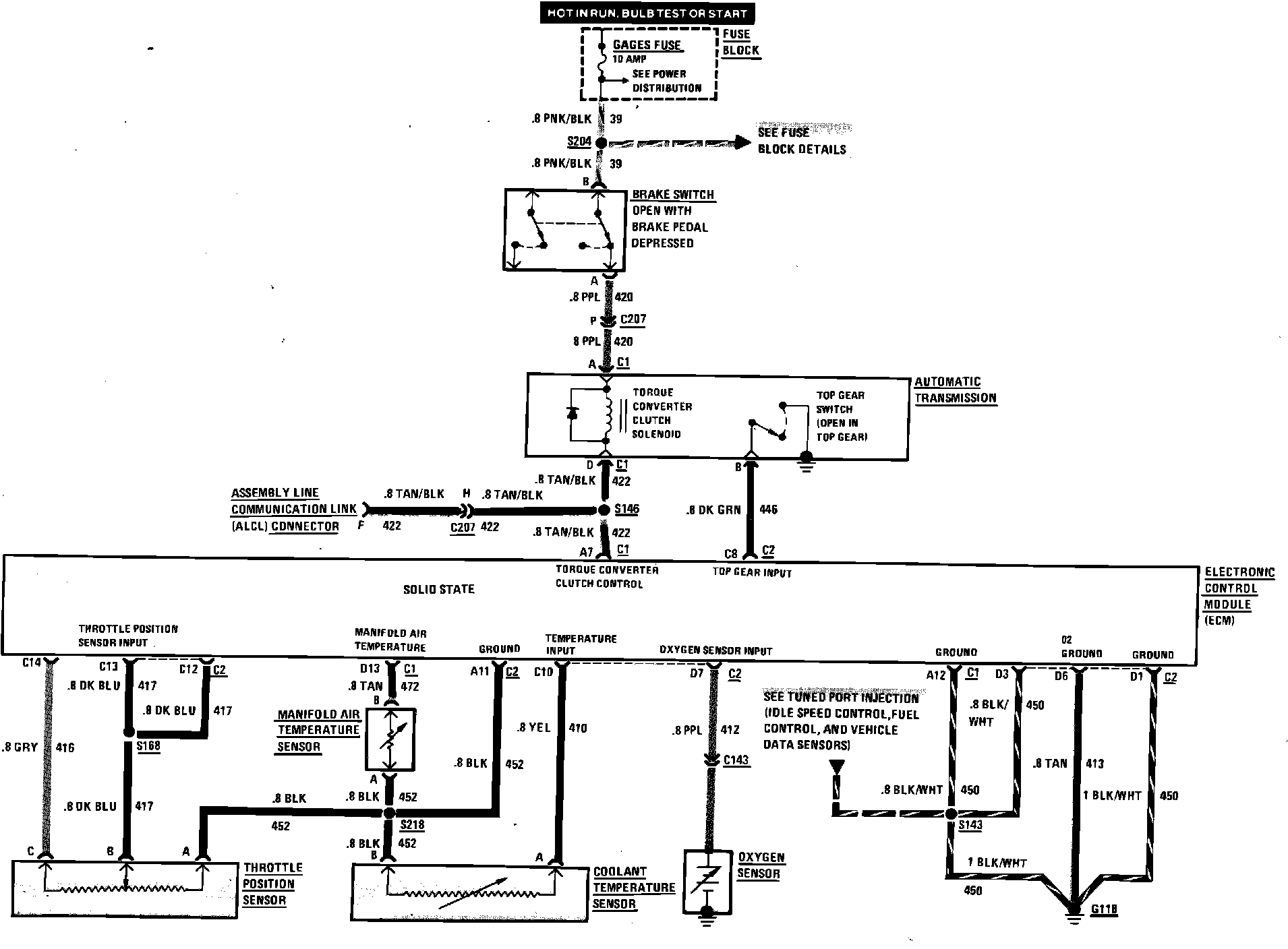

Tuned Port Fuel Injection (Engine Data Sensors & Torque Converter Clutch) Wiring Circuit:
