Cold Start & Emission Controls
Cold Start & Emission Controls

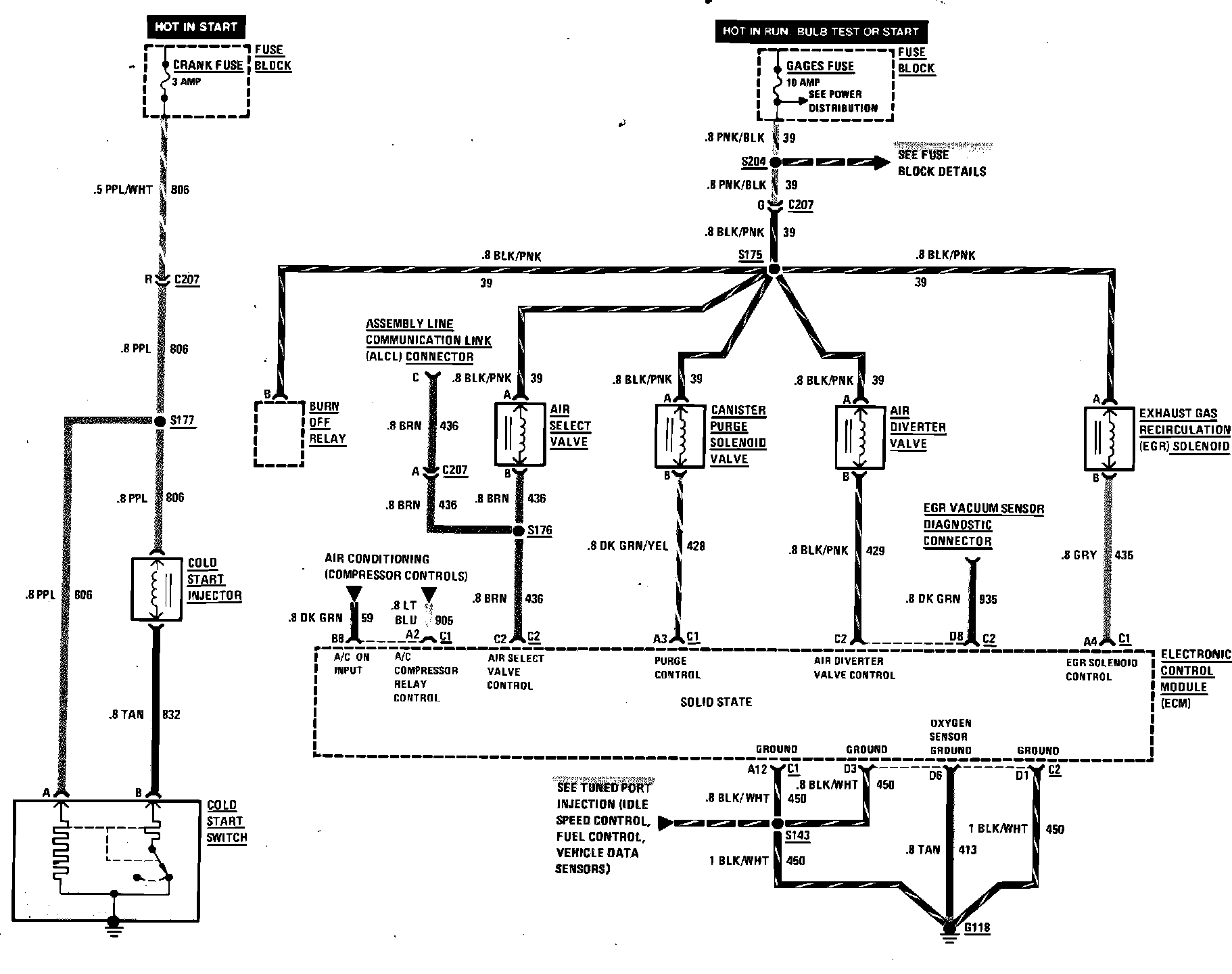

Tuned Port Fuel Injection (Cold Start & Emission Control) Wiring Circuit:
