Home
>>
Chevrolet
>>
1985
>>
Camaro V6-173 2.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heating and Air Conditioning
>>
System Diagram
>>
Blower Controls
>>
Sport Coupe
Sport Coupe

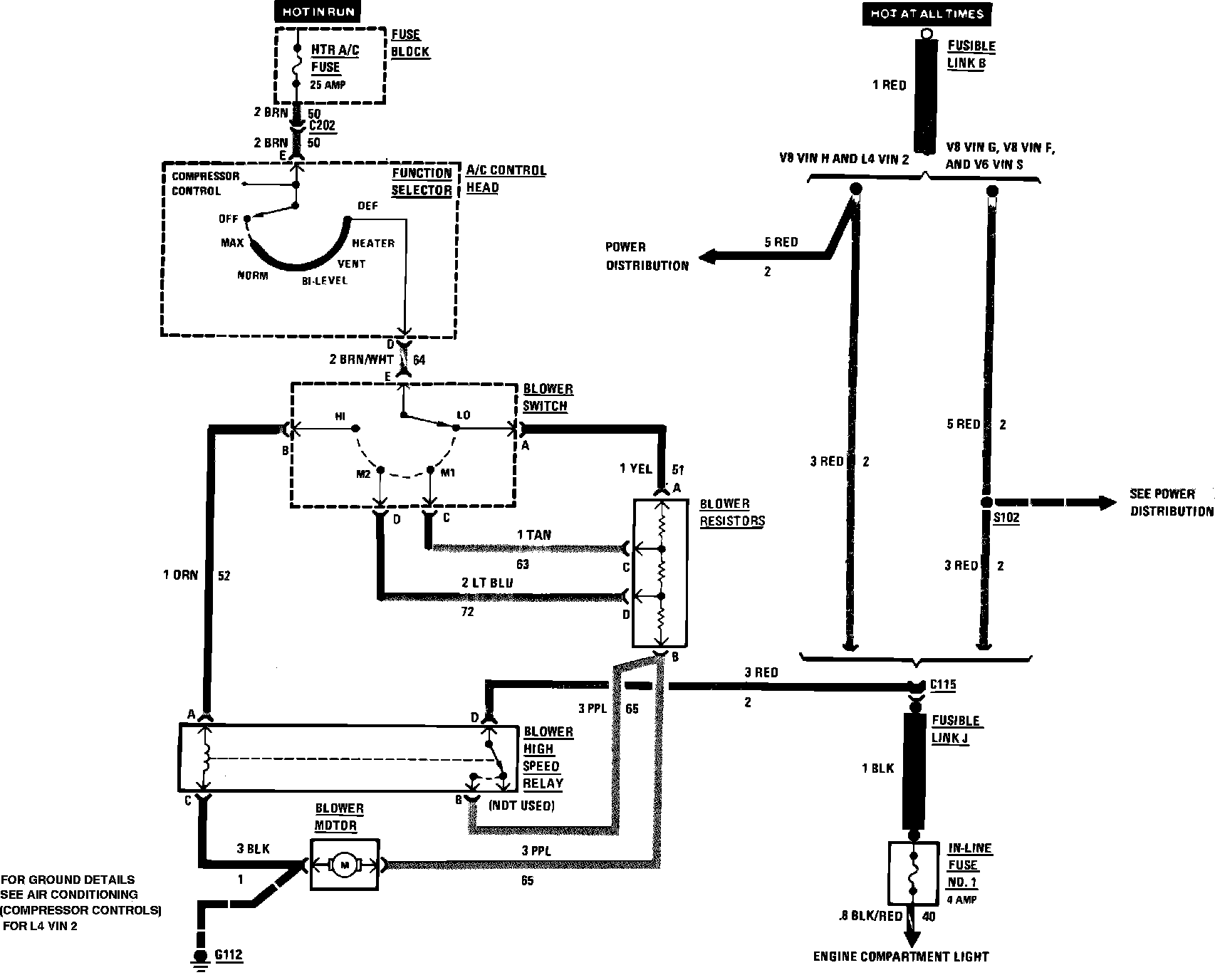

A/C Blower Control Wiring Circuit:
