Part 2 of 2

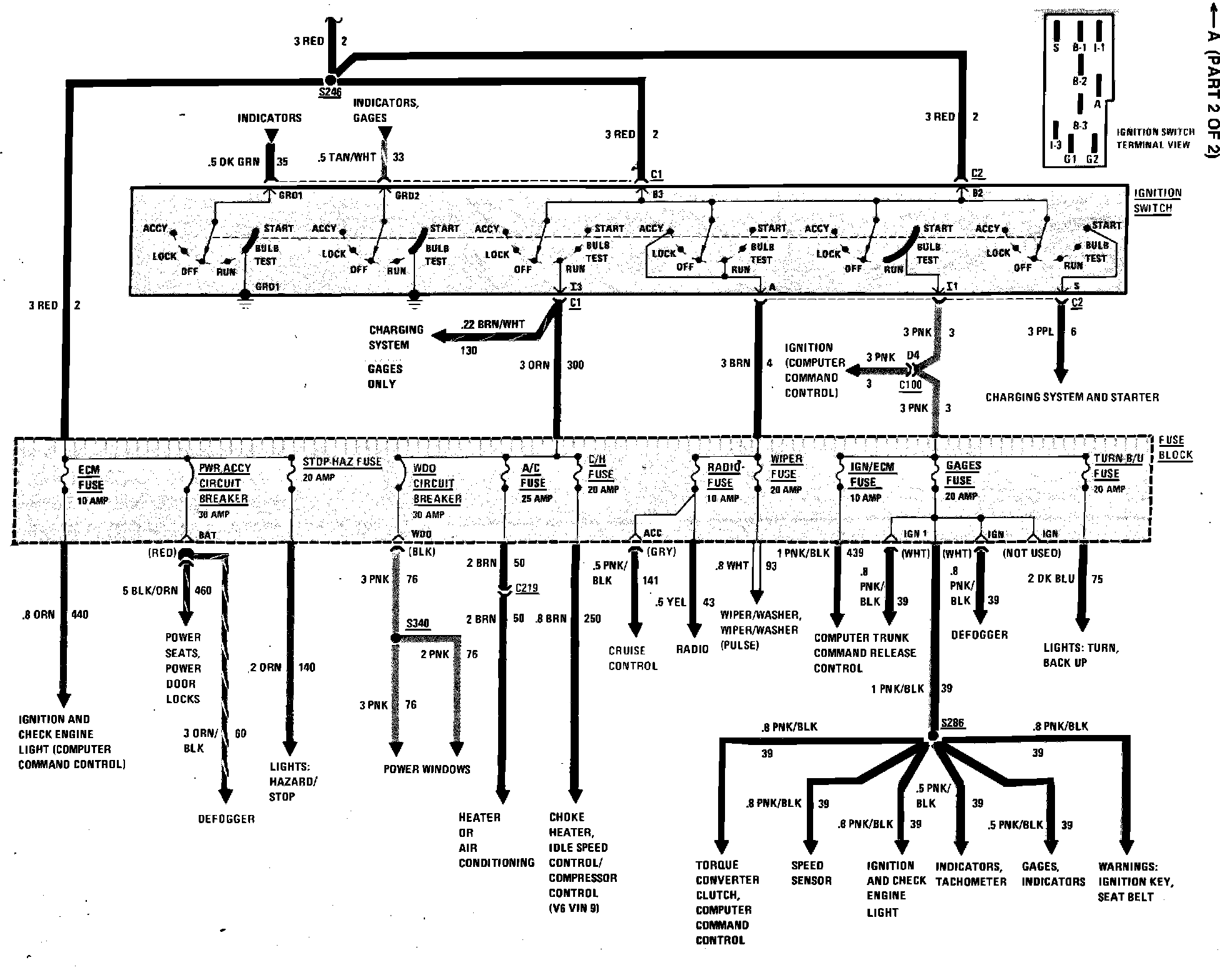

Fig. 386 Power Distribution (Part 2 Of 2). 1984 Caballero, El Camino & Monte Carlo W/Gasoline Engine:
