Full Size Chevrolet V8-350 5.7L DSL
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Positive Crankcase Ventilation
>>
Locations
Positive Crankcase Ventilation: Locations

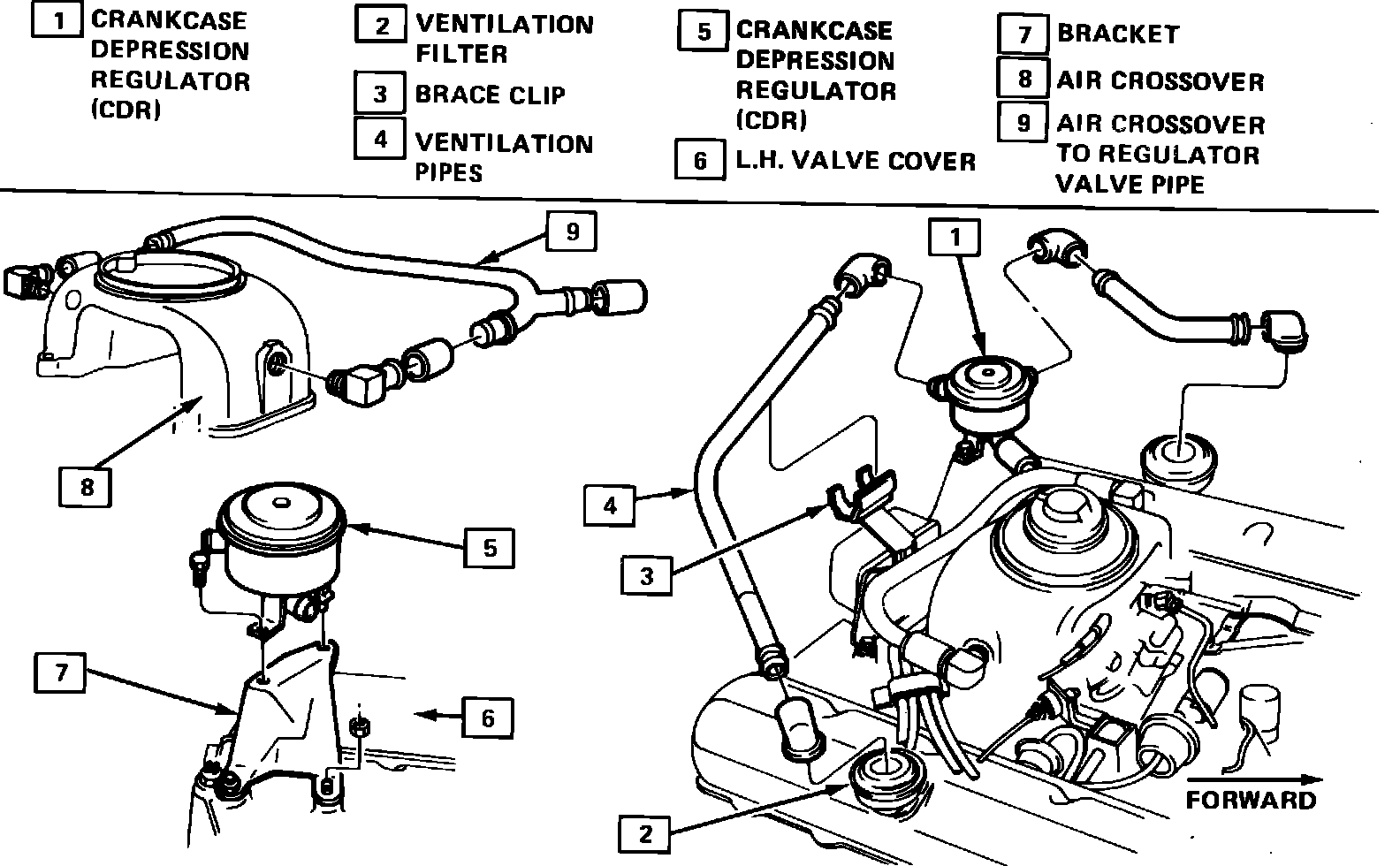

Fig. 94 PCV System Components. 1984 Models W/V8-350 Diesel:
