Full Size Chevrolet V8-350 5.7L DSL
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Horn
Horn

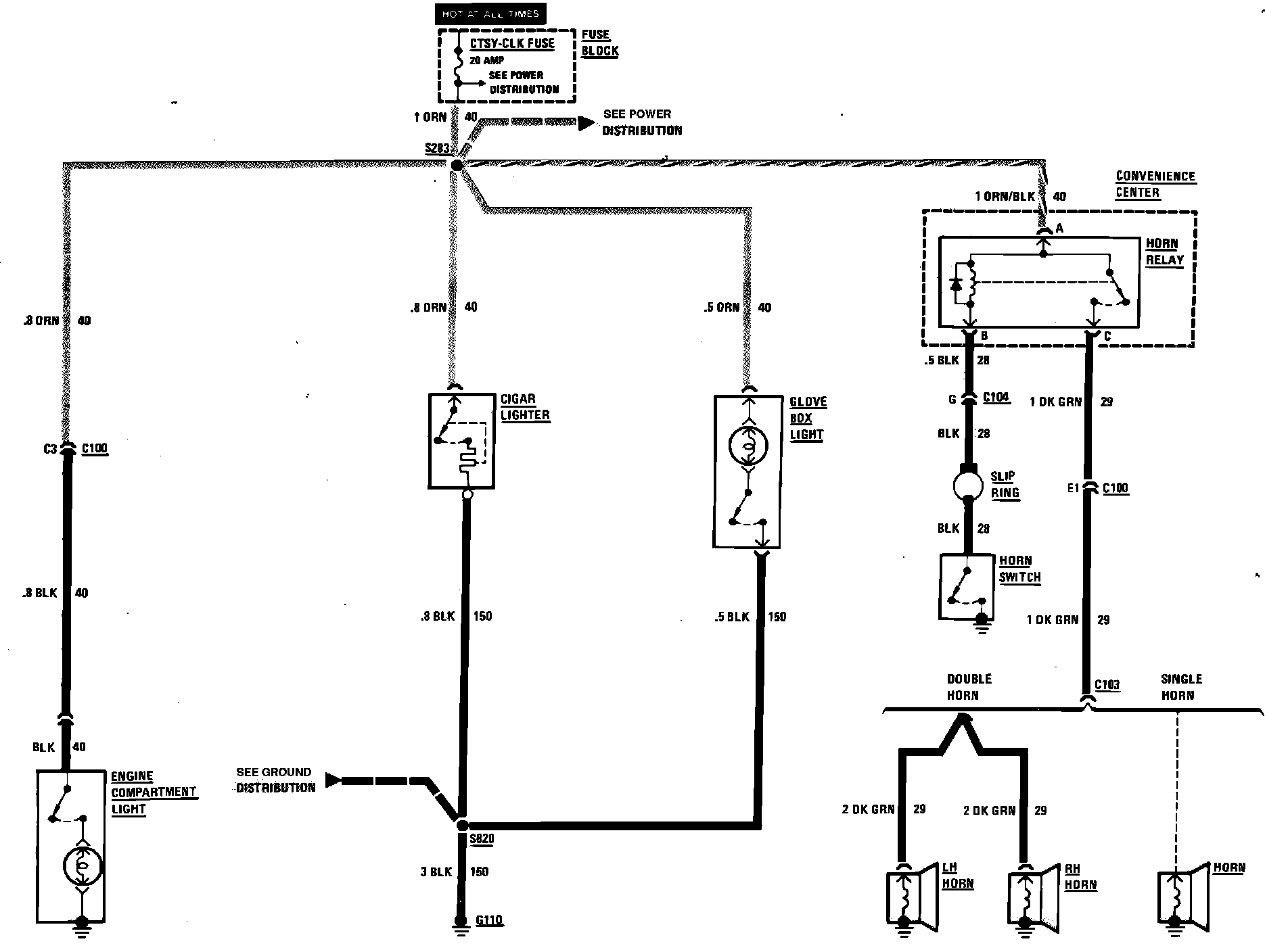

Cigar Lighter, Engine Compartment Lamp, Horn & Glove Compartment Lamp Wiring Circuit:
