Full Size Chevrolet V6-231 3.8L VIN A
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Malfunction Indicator Lamp
>>
Diagrams
>>
Electrical Diagrams
>>
W/V6 Non-Turbocharged Engine
W/V6 Non-Turbocharged Engine

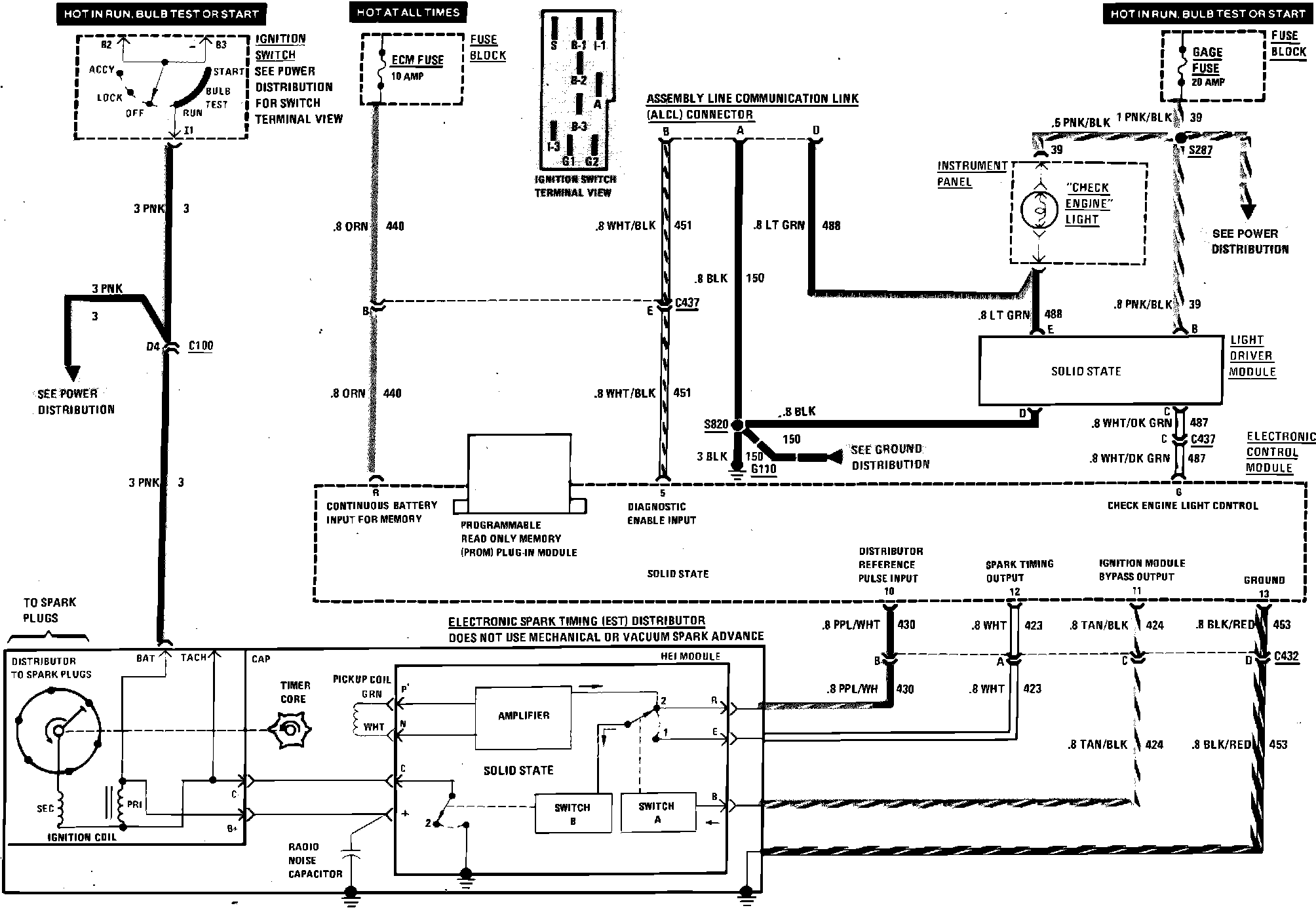

Computer Command Control (Check Engine Light & Ignition) Wiring Circuit:
