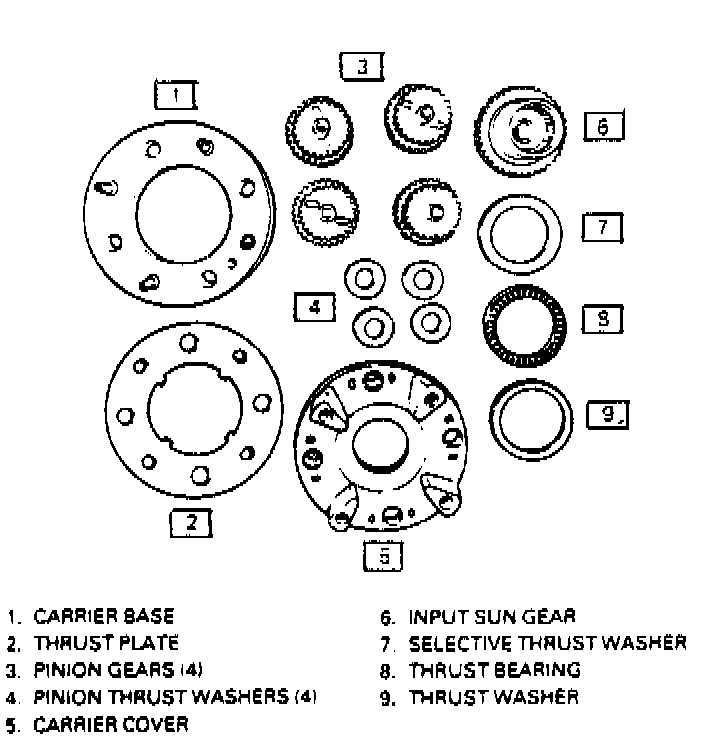

Carrier Housing

Description:

1. Remove nuts attaching carrier cover, then the cover.

2. Remove thrust washer, thrust bearing, selective washer and input sun gear.

3. Remove pinion gears.

4. Remove steel thrust plate from carrier housing.

5. Clean and inspect all parts for wear or damage. Replace parts as necessary. The carrier housing must be reassembled in the case.
