Power Seat - Inoperative/Blown Fuse

91chevy15

Number: 90-412-10

Section: 10

Date: MARCH 1991

Corp. Bulletin No.: 131015


Subject: POWER SEAT INOPERATAIVE AND/OR BLOWS FUSE


Model and Year: 1984-90 CORVETTE

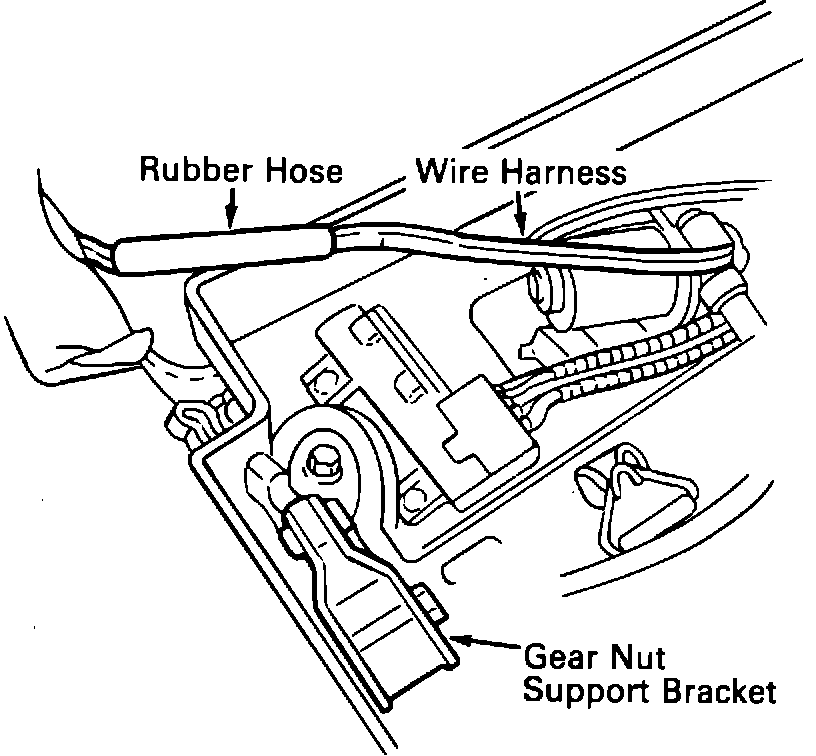

Figure 1:

Condition: Power Seat (AQ9) inoperative and/or blows fuse.

Cause: Seat Control Switch Wire Harness may be shorted at gearnut support bracket. (See Illustration) With seat cushion installed, harness contacts gearnut support bracket and may become shorted with weight of driver/passenger.

Correction: Repair and/or replace harness as required. Using a section of rubber hose (gas line) about (4) inches long (split), cover harness as illustrated taping both ends.


Labor Operation Number: T1713

Labor Time : 0.2 Hour

Trouble Code: 92
