Front

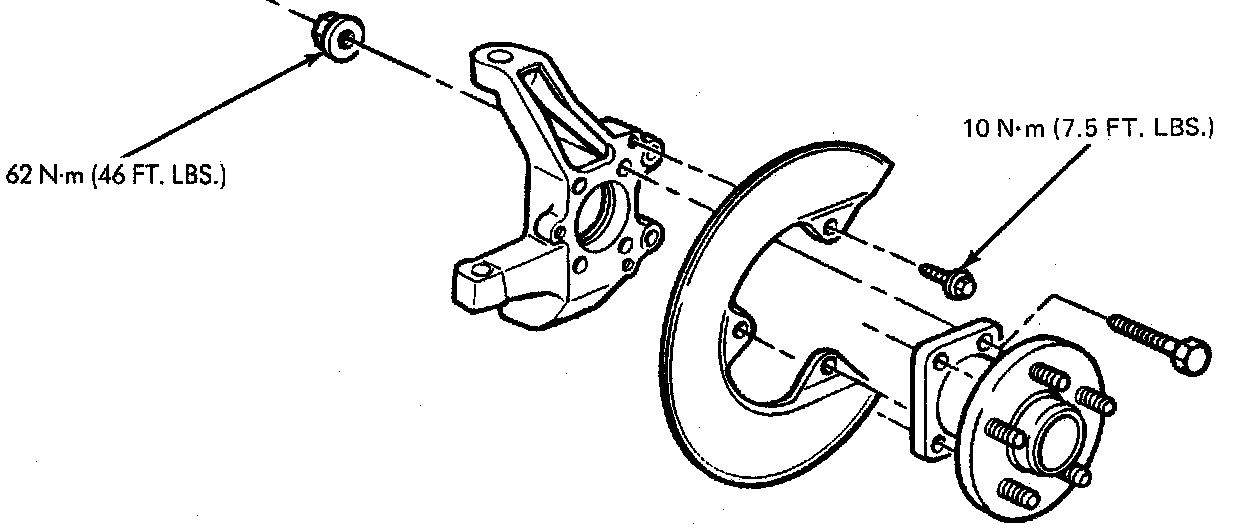

FRONT WHEEL BEARING AND/OR HUB








Removal

1. Hoist vehicle and remove wheel and tire.
2. Remove hub and bearing assembly.
3. Remove splash shield.


Install

1. Reverse removal procedure.
2. Torque nuts and screws to specifications.
3. When installing ball joints and tie rod end to knuckle, do not back off nut for cotter pin insertion.
4. Install wheel and tire and lower vehicle.
