Headlamp Motor: Service and Repair

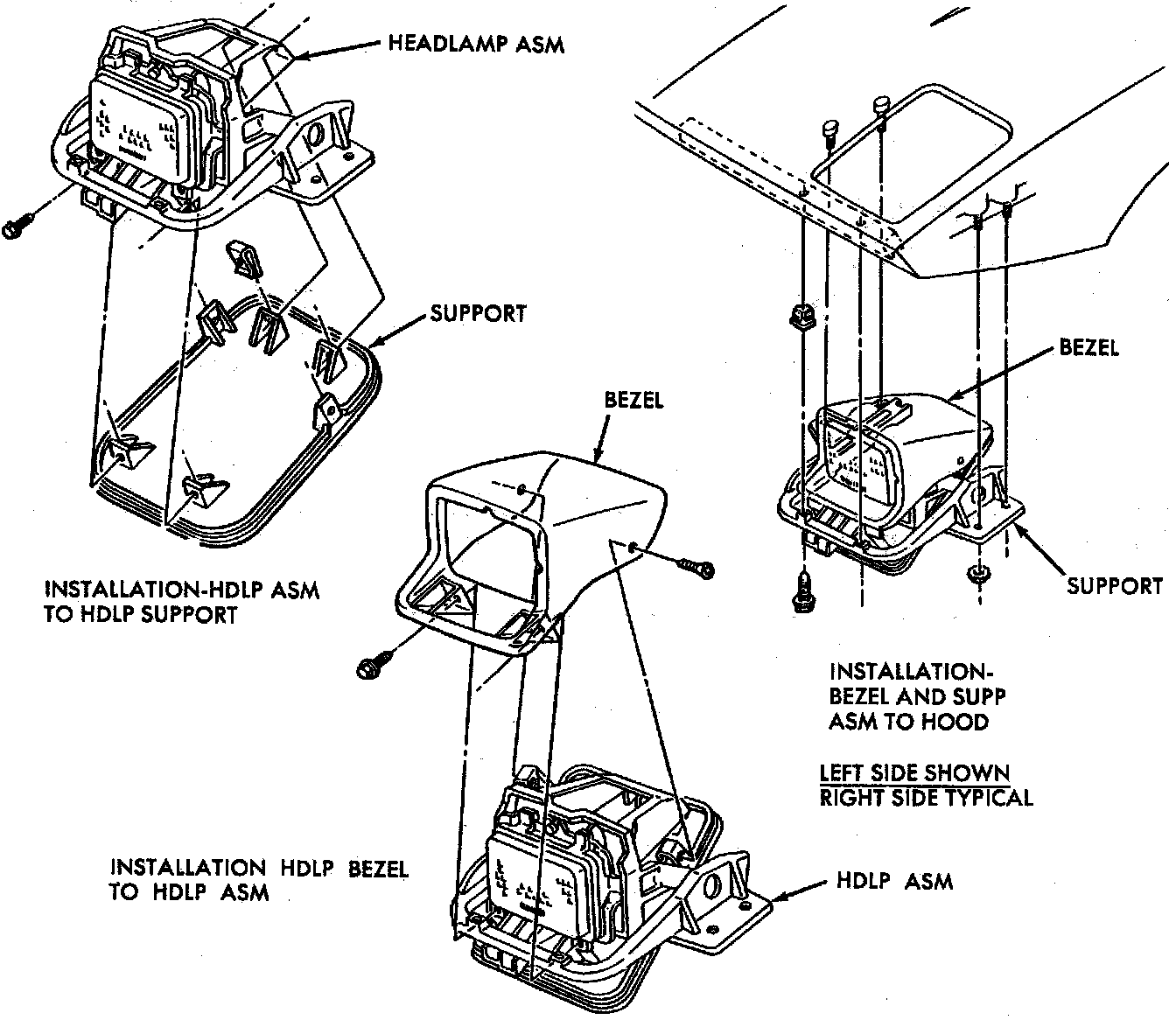

Headlamp Assembly Removal






1. Open hood and actuate headlamp switch to headlamps open position.
2. Disconnect battery ground cable.
3. Remove 4 (four) nuts, headlamp assembly to hood, 1 (one) carriage bolt and nut.
4. Remove 2 (two) screws) headlamp assembly to hood (at front of headlamp)
5. Disconnect headlamp and motor connectors.
6. Headlamp assembly may now be removed for further disassembly.
7. Reverse removal procedure to install.
