Function Select Switches Inputs

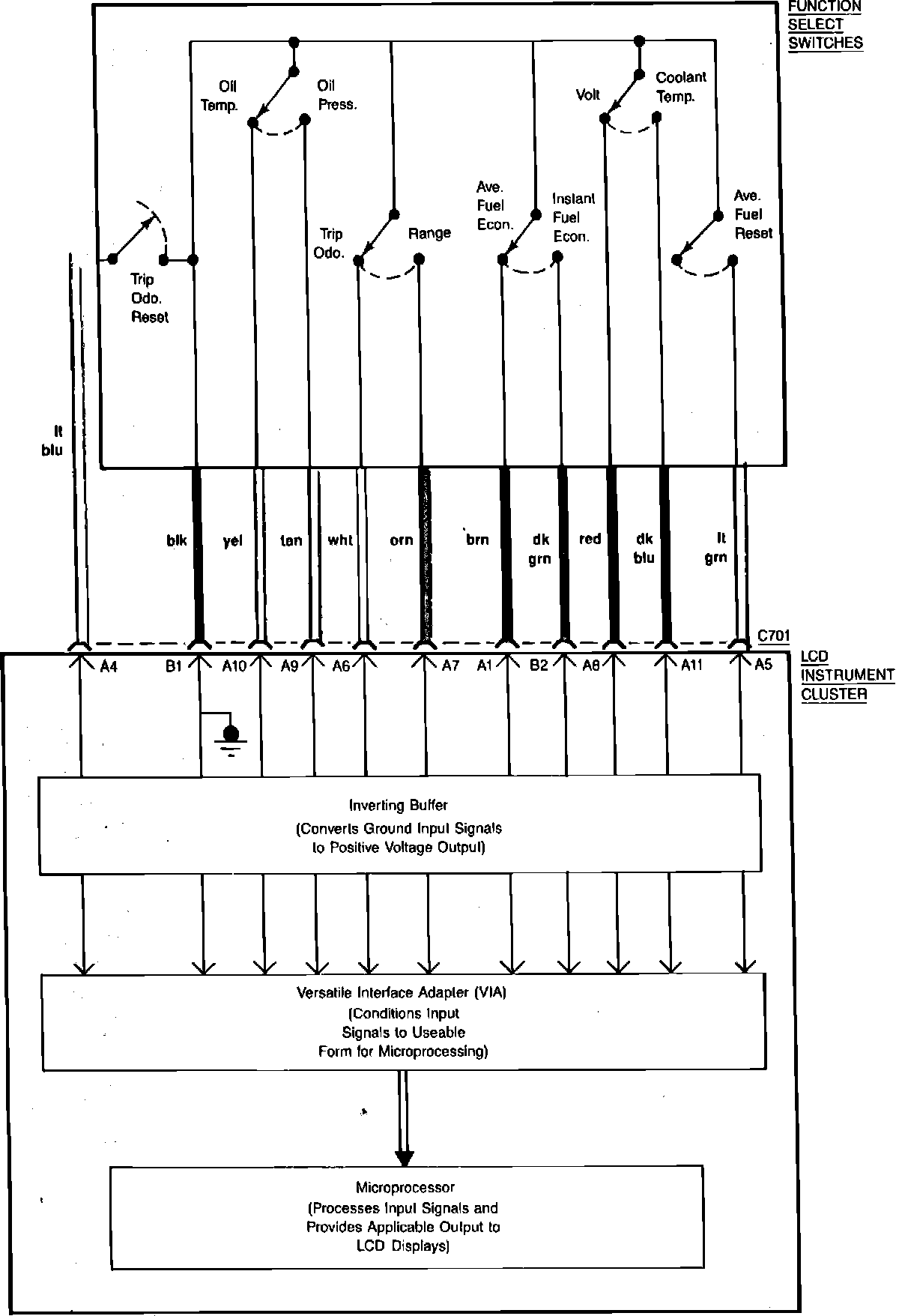

LCD Instrument Cluster Wiring Circuit (Function Select Switches Inputs):
