Chevrolet
>>
1984
>>
Corvette V8-350 5.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power Trunk / Liftgate Lock Actuator
>>
Manual Transmission
Manual Transmission

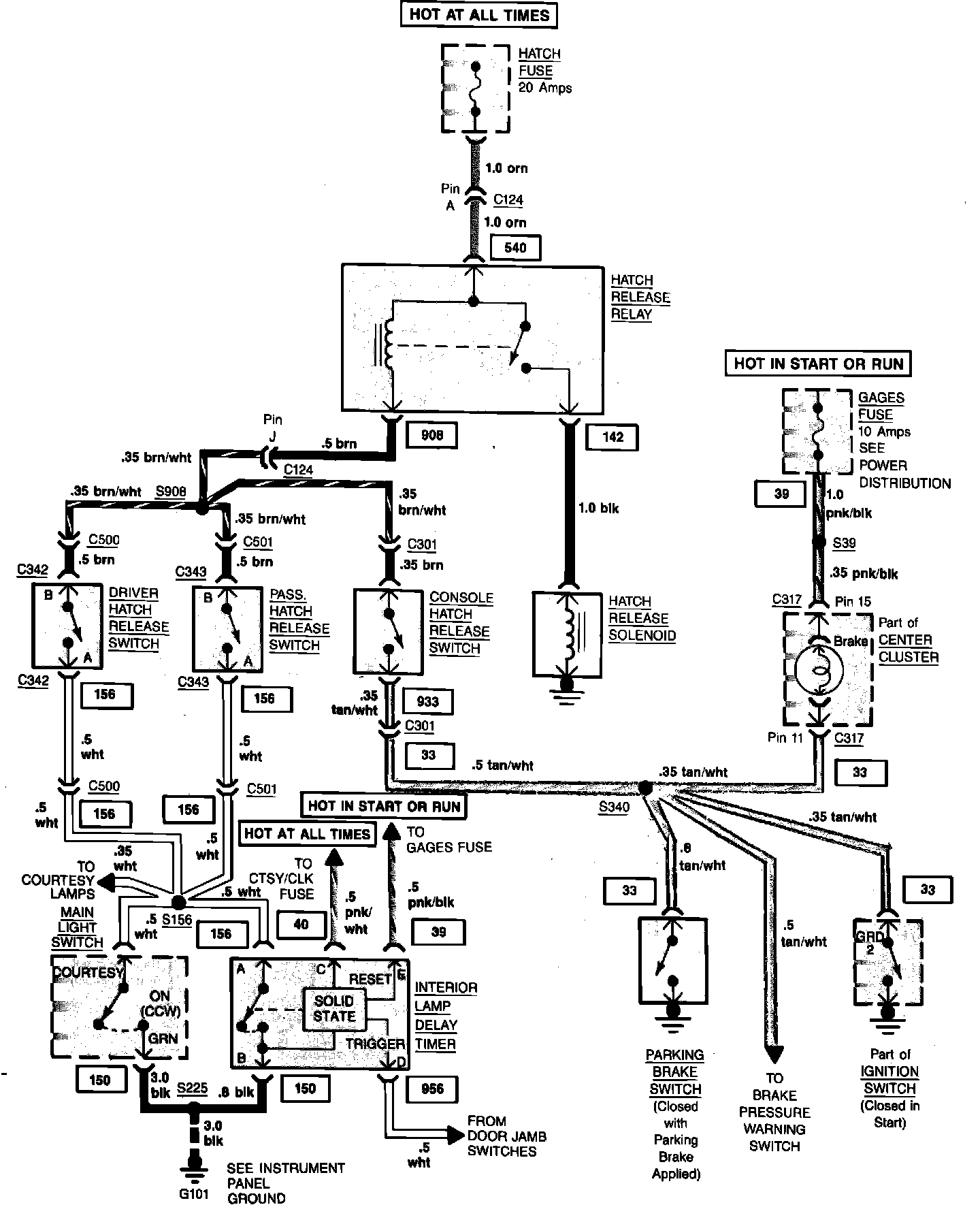

Hatch Release Wiring Circuit (Manual Transmission):
