Front Center Air Deflector - Damaged
87chevy26Number: 87-263-10
Section: 10
Date: Jan., 1988
Subject: FRONT CENTER AIR DEFLECTOR DAMAGE
Model and Year: 1984-87 CORVETTE
TO: ALL CHEVROLET DEALERS
Comments that the front air deflector (dam) gets damaged by bumps, curbs and snow piles may be received. A service kit with two new braces has been released to address this situation on affected vehicles.

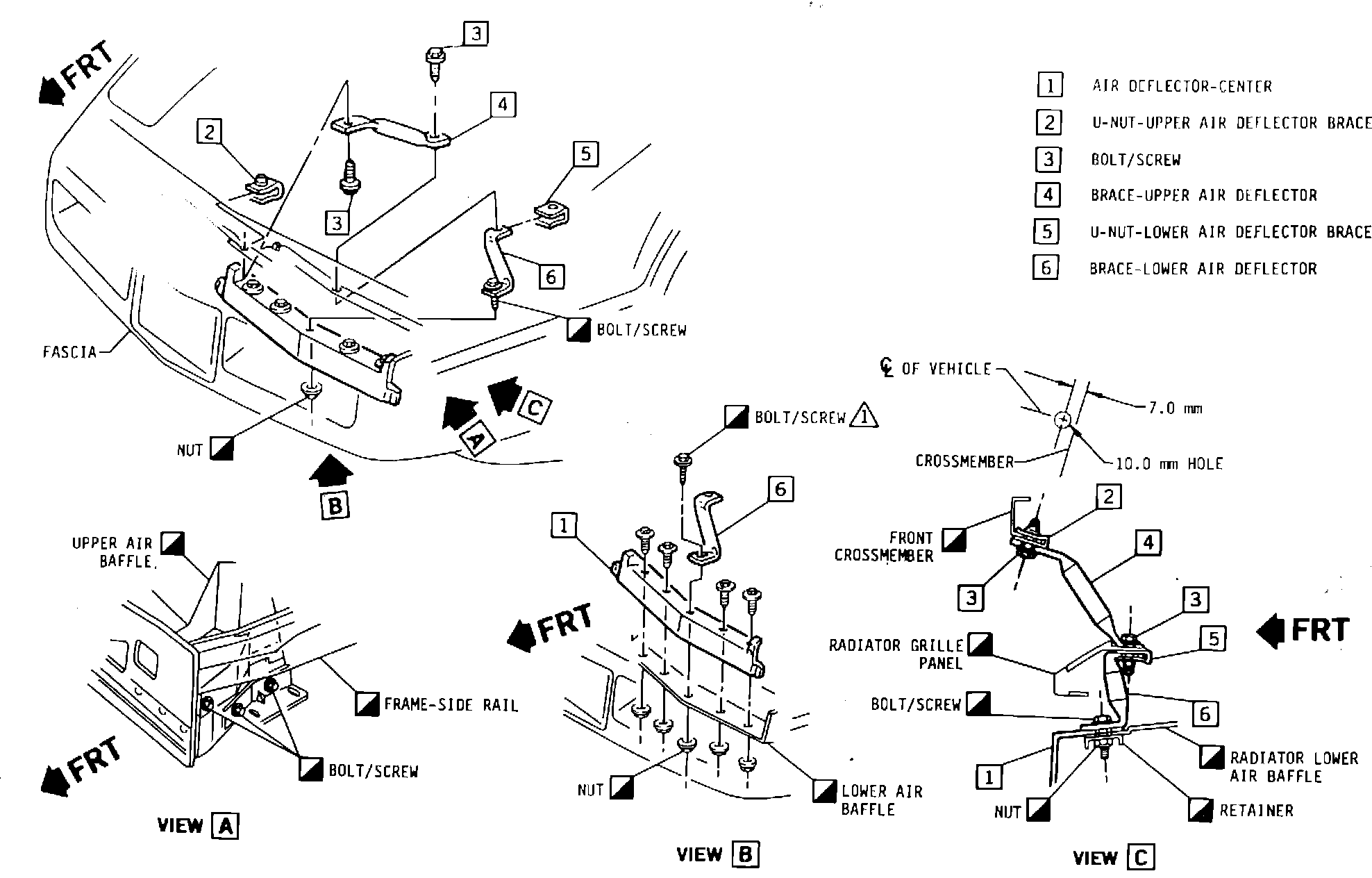

This condition can be addressed by installing the braces per the illustration and instructions provided in the service kit. The part numbers for the service kits are as follows:
Model Year Service Kit, Part Number Application
1984-85 10107825 All Vehicles
1986 10107824 All Vehicles
1987 10107824 For Z51 Option
1987 10107825 For Base (W10 Z51)
Labor Operation Number: T1259
Labor Time: .3 Hours
