Door Trim Panel - Loose

Number: 87-116

Section: 10

Date: APRIL 1987
Subject: LOOSE CORVETTE DOOR TRIM PANEL


Model and Year: 1984-87 CORVETTE

TO: ALL CHEVROLET DEALERS


Some 1984-87 Corvette door trim pads may be loose from the
door inner panel at the rear upper edge of the door.

If this condition is found it may be repaired by adding a
retainer to the door trim panel using the following procedure.

1. Remove door trim panel per instructions in the Corvette Shop Manual.

RETAINER INSTALLATION:

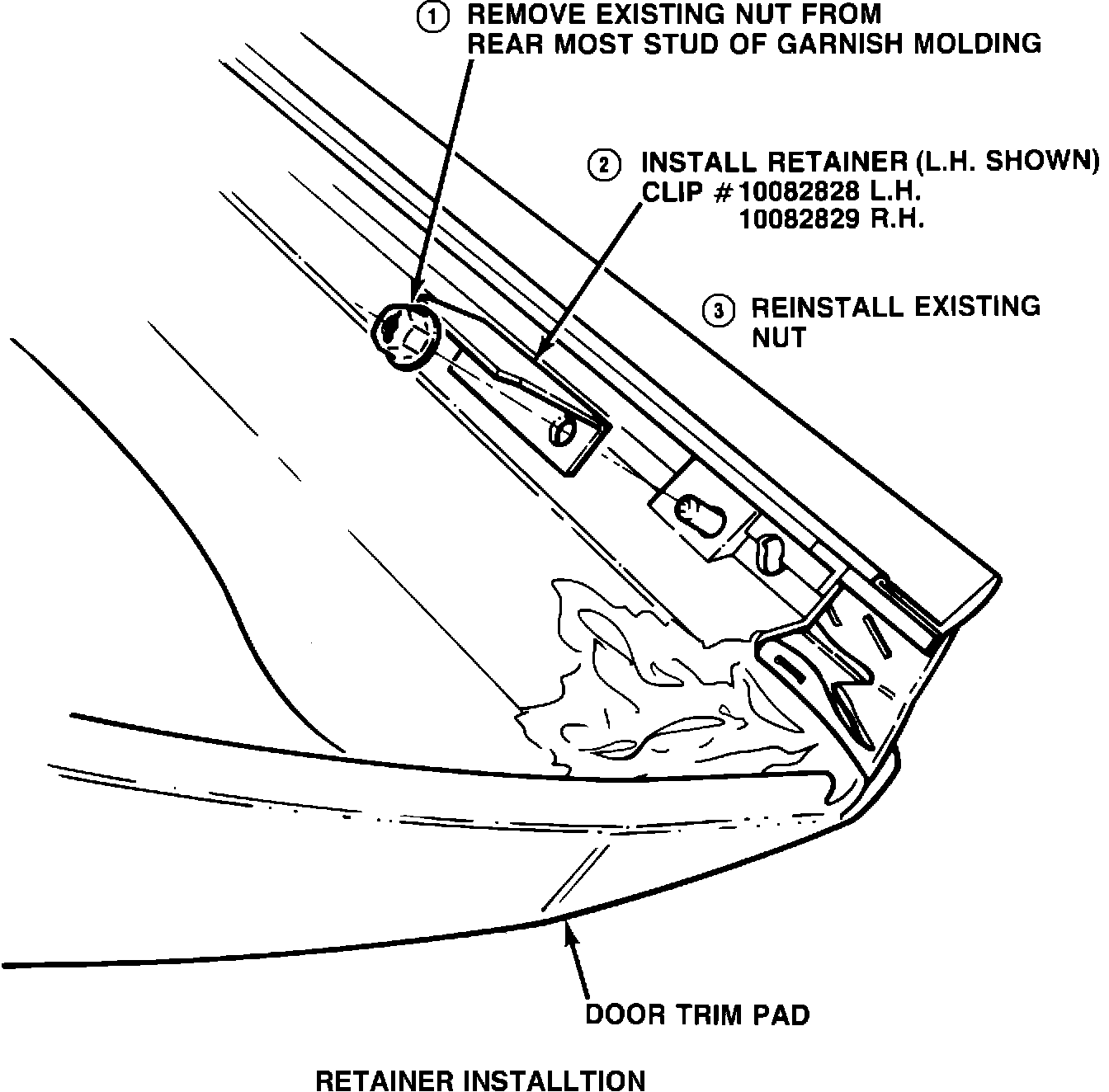

2. Install retainer, P/N 10082828-9, L.H./R.H. as illustrated, to the trim pads rear upper garnish molding stud using spin nut. (See Illustration)

3. To remove a trim panel with a retainer, push trim panel upward and outboard to disengage clip from door inner
panel at beltline.

Use applicable Labor Operation Number and Labor Time.
