Body - Upper Quarter Panel Removal and Installation: Overview

Number: 85-219

Section: 10

Date: FEB., 1987
Subject: UPPER QUARTER PANEL REMOVAL AND INSTALLATION PROCEDURE FOR CRACK REPAIRS IN UPPER PANELS


Model and Year: 1984-85 CORVETTE

ILLUSTRATION 1 - REAR UPPER PANEL:

TO: ALL CHEVROLET DEALERS


This bulletin is being issued to announce the release of two new service parts for repair of cracked upper quarter panels.

If a vehicle develops a crack in the rear upper panel (See Illustration 1) both the left and right side brackets should be installed and the cracked upper body lower panel should be replaced.
PARTS INFORMATION

PART NAME PART NUMBER

Rear Upper Body Lower Panel (Left) 10070219
Rear Upper Body Lower Panel (Right) 10070220


Bracket Lock Pillar to Underbody (Left) 14091061
Bracket Lock Pillar to Underbody (Right) 14091062

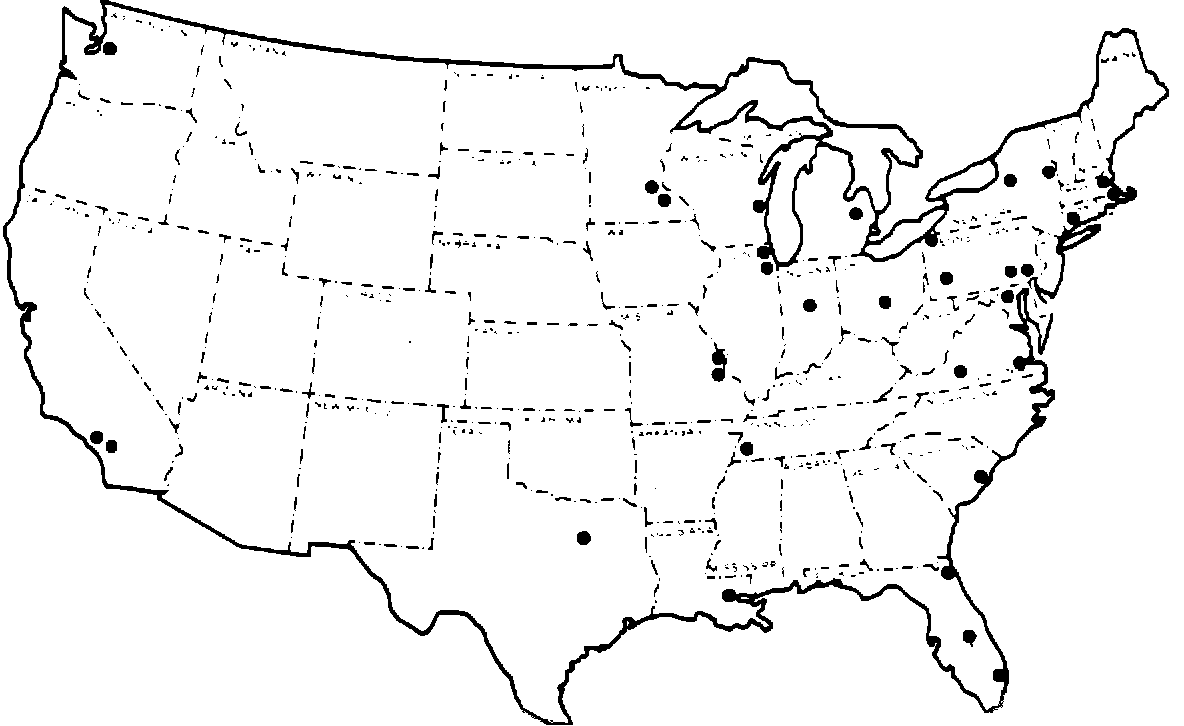

FUSOR 320/322 EPOXY DISTRIBUTOR LOCATIONS:

MATERIAL INFORMATION

Fusor 320/322 Epoxy --- See Illustration 13
