Deck Lid CS Emblem - Missing
Number: 84-40Section: 10
Date: Dec., 1983
Subject: MISSING DECK LID
"CS" EMBLEM
Model and Year: 1984 CHEVETTE "CS" SERIES VEHICLES
TO: ALL CHEVROLET DEALERS
Some 1984 Chevette "CS" series may be missing the deck lid "CS" emblems. Chevette "CS" series vehicles can be identified by the appearance of the letter B at the fifth position of the vehicle serial number.
The "CS" emblem, P/N 14044267, can be ordered from WDDGM.
REAR HATCH LID:

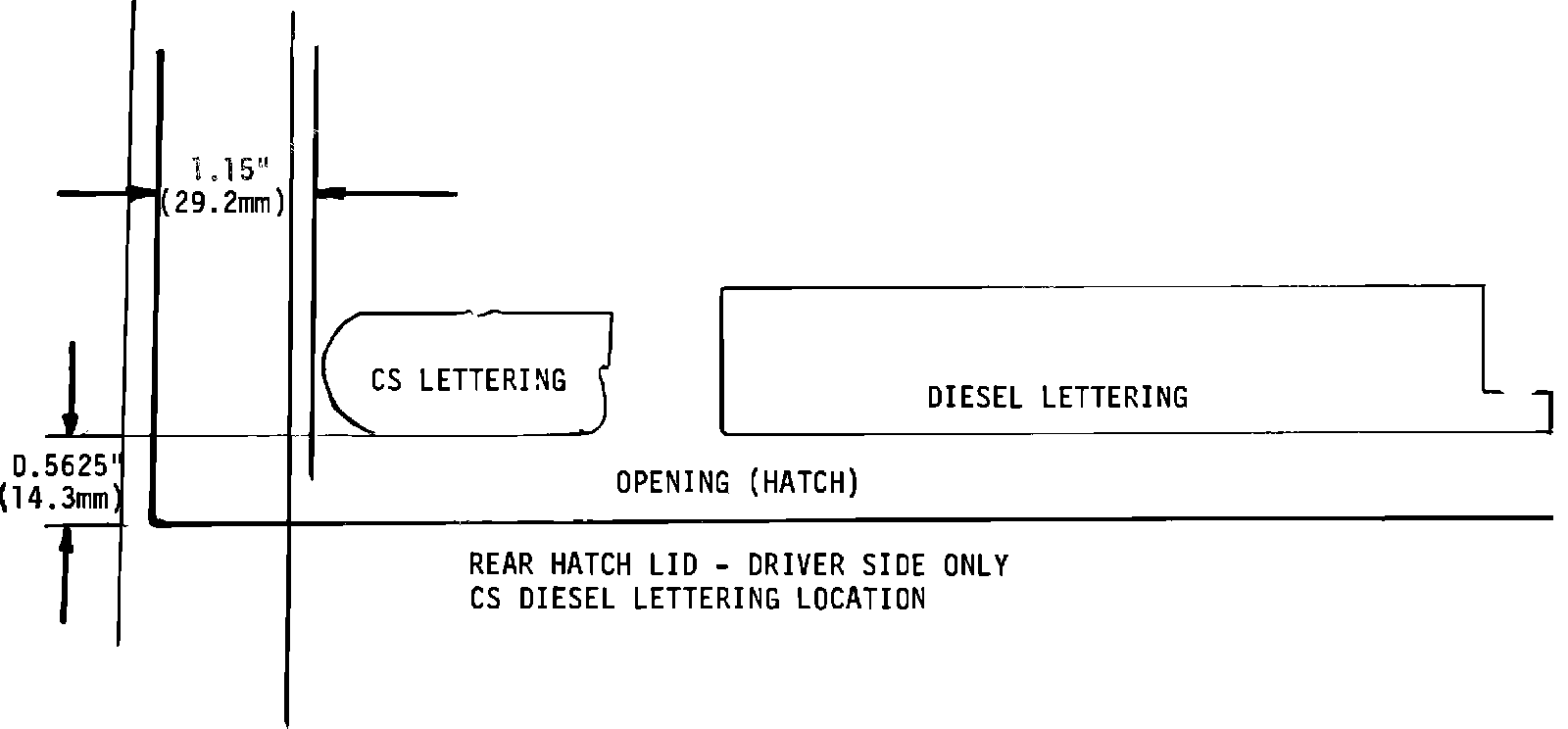

REAR HATCH LID DRIVER SIDE:
SERVICE PROCEDURE
1. Clean area of body surface where emblem is to be applied with a suitable solvent (oil free-naptha or alcohol). Use clean cloth only.
2. Dry surface with clean cloth.
3. Body and emblem temperature at time of emblem application should be 70~F to 90~F.
Adhesive surface must not be touched or brought in contact with any surface or foreign matter.
4. Apply emblem to LH side of rear deck lid per attached sketch and press firmly in place.
Use applicable labor operation.
