Chevrolet
>>
1984
>>
Chevette L4-98 1.6L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Emissions Controls & Engine Data Sensors
Emissions Controls & Engine Data Sensors

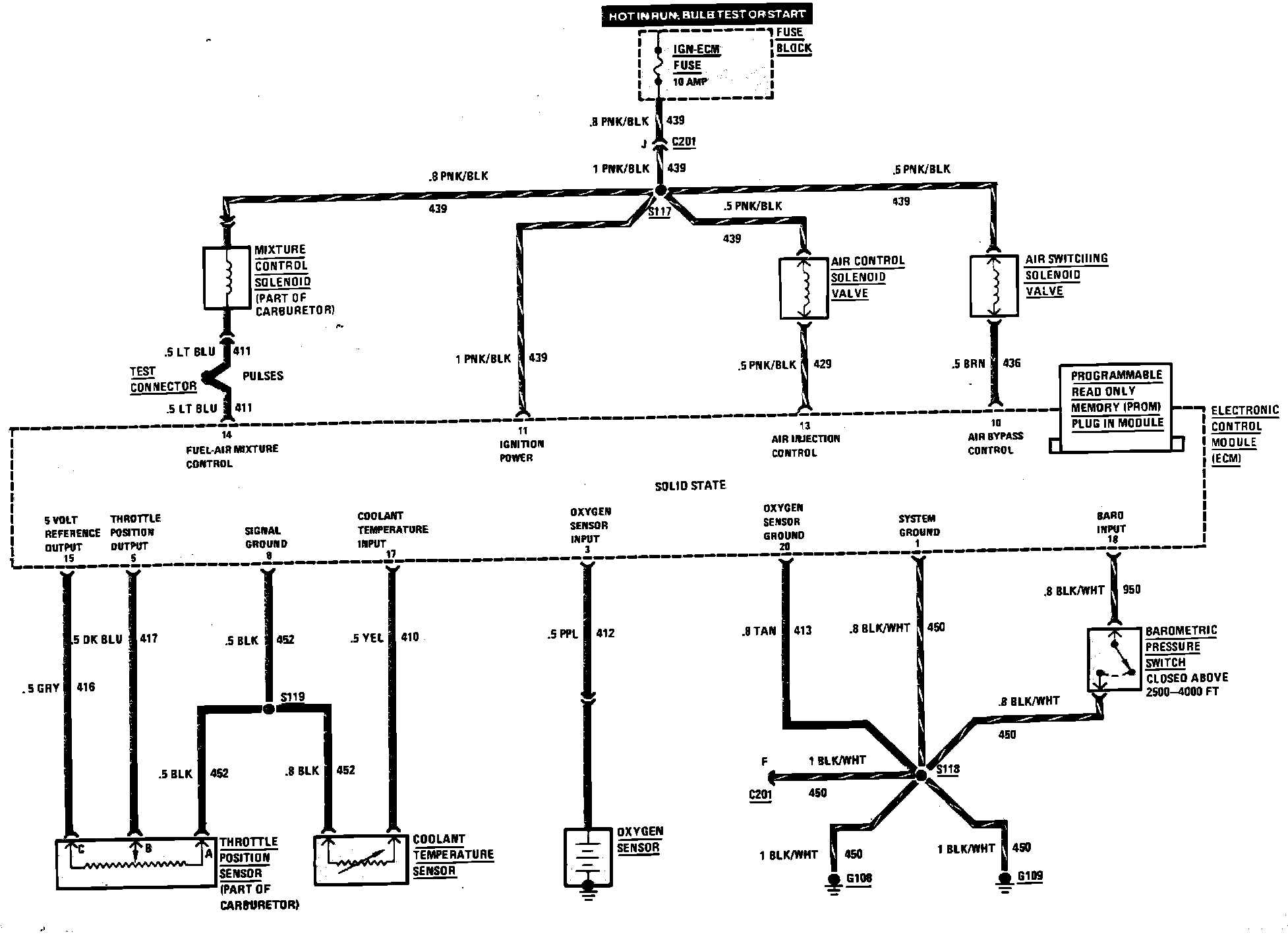

Computer Command Control (Emissions Controls & Engine Data Sensors) Wiring Circuit:
